Non Rechargeable 3.0V CR14250 Lithium Primary Battery 800mAh With Tabs Application For Smart Home
Non Rechargeable 3.0V CR14250 Lithium Primary Battery 800mAh With Tabs Application For Smart Home
Specification:
| No. | Items | Specification |
| 1 | Nominal Voltage | 3.0 V |
| 2 | Rated Capacity | 800 mAh (by 20mA@1.5V) |
| 3 | Max. Discharge Current | 800 mA continuous |
| 4 | 900 mA pulse | |
| 5 | Discharge Cut-off Voltage | 1.5 V |
| 6 | Weight | Approx. 10g |
| 7 | Dimensions | Max Diameter: 14.5mm |
| Max Height: 25mm | ||
| 8 | Operating Temp. | -40 ℃ to 60 ℃ |
| 9 | Storage Temp. ＜1 year | -10 ℃ to 40 ℃ |
| 10 | Storage Temp. ＜3 months | -40 ℃ to 60 ℃ |
Non Rechargeable 3.0V CR14250 Lithium Primary Battery 800mAh With Tabs Application For Smart Home

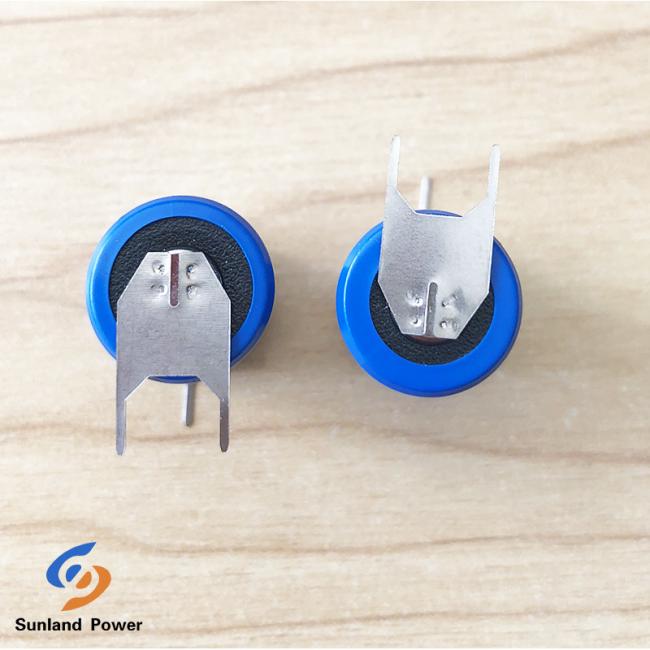

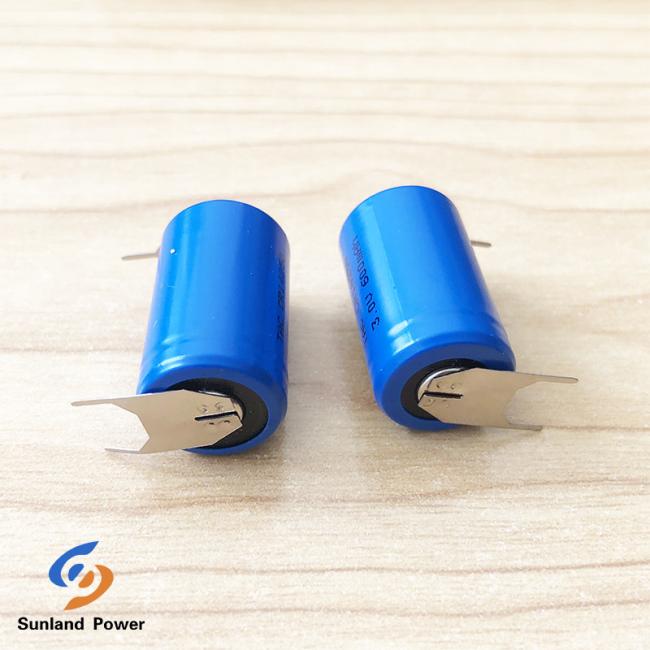

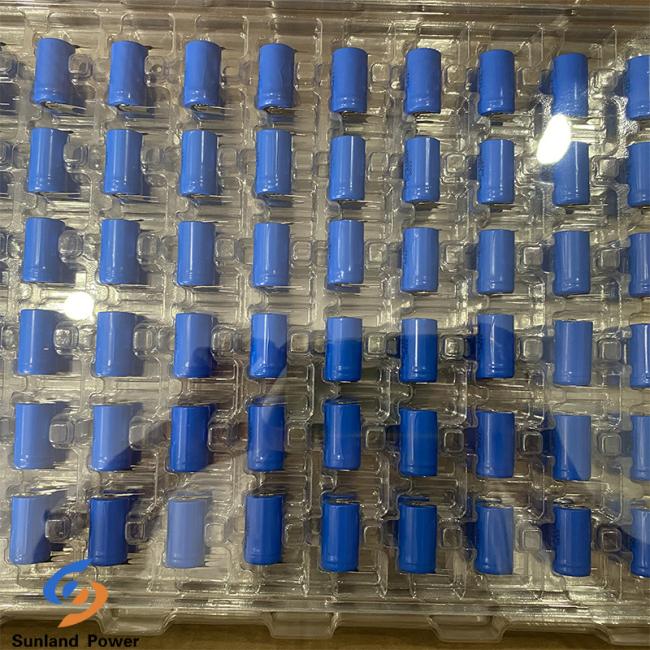

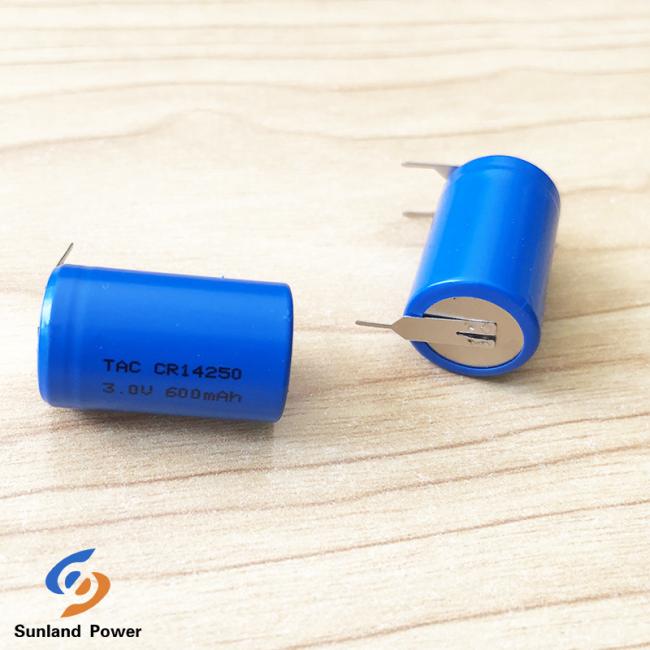

Picture:
Non Rechargeable 3.0V CR14250 Lithium Primary Battery 800mAh With Tabs Application For Smart Home
Battery operation instruction
1. Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
2. Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.
3. Storing the Batteries
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.
