No.

Item

General Parameter

Remark

1

Rated Capacity

4.5Ah

Standard discharge(0.2C)after standard charge(0.2C)

2

Minimal Rated
Capacity

4.0Ah

3

Nominal Voltage

6.4V

4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

Charge: CC@0.5C to 7.3V, then CV till current to 0.05C

Rest: 30min.
Discharge: 0.5C to 10.0V
Temperature:20±5℃
Carry out 1000 cycles

5

Discharge cut-off voltage

≥4.6V

5.0V(recommended)

6

Charging cut-off voltage

15.6V

7.3V(recommended)

7

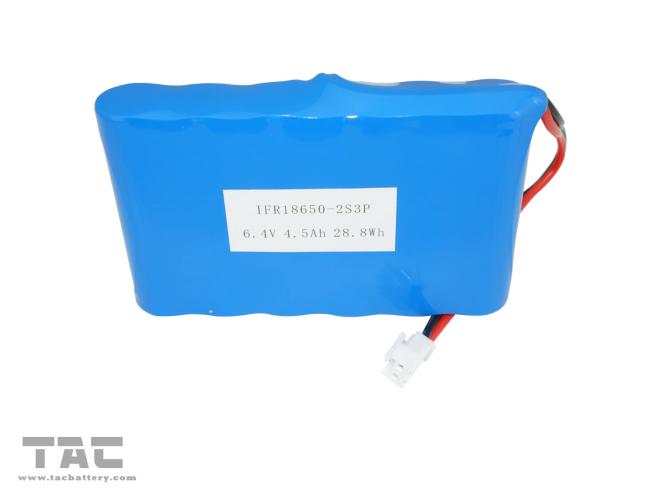

Cell and assembly method

IFR18650EC-1.5AH

2S3P

8

Standard discharge

Constant current 0.2C
Cut-off voltage 7.3V

9

Maximum Charge Current

4.5A

10

Maximum Discharge Current

10A

Over current 30±2A 9mS

11

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.


Discharge: -10~50℃

13

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.
at the shipment state

Less than 3 months:-5~35℃

14

Weight

Approx: 285g

15

Pack Dimension

High:71.5mm
Width: 25.5mm
length: 112.5mm

max size
