7.2V 250H Nickel Metal Hydride Rechargeable Battery of 280mAh

7.2V 250H Nickel Metal Hydride Rechargeable Battery of 280mAh

1. Nominal Voltage is 7.2V and the rated capacity is 280mAh
2. The max dimension: D:25.2mm±0.3mm, H:46.6mm±1mm

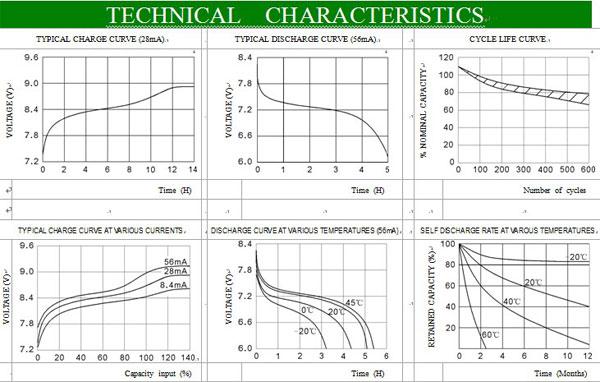

Pictures:

1. CELL AND TYPE
   1. Cell  : Sealed Ni-MH Button Cell
   2. Type  : Button type

1. RATINGS
   1. Nominal voltage   :  7.2V
   2. Nominal capacity  :  280mAh
   3. Typical weight    :  70g
   4. Standard charge   :  28mA×14hours
   5. Rapid charge     :  56mA×6hours

Trickle current    :  8.4mA

1. Discharge cut-off voltage: 6.0V
2. Temperature range for operation (Humidity: Max.85%)

      Standard charge       0 ~ +45℃

      Rapid charge       +10 ~ +45℃

      Trickle charge        0 ~ +45℃

      Discharge          -10 ~ +45℃

3.8  Temperature range for storage    (Humidity: Max.85%)

     Within 2 years         -20 ~ +35℃

     Within 6 months        -20 ~ +45℃

     Within a month         -20 ~ +45℃

     Within a week          -20 ~ +55℃

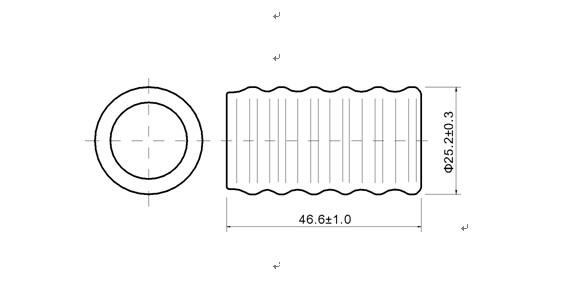

1. ASSEMBLY & DIMENSIONS

 Per attached drawing

1. PERFORMANCE
   1. TEST CONDITIONS

The test is carried out with new batteries (within a month after delivery)

ambient conditions

    Temperature:  +25 ± 5℃

Humidity:     60 ± 20%

Note 1

    Standard charge     :  28mA×14hours

    Standard discharge   :  56mA to 6.0V

1. TEST METHOD & PERFORMANCE
