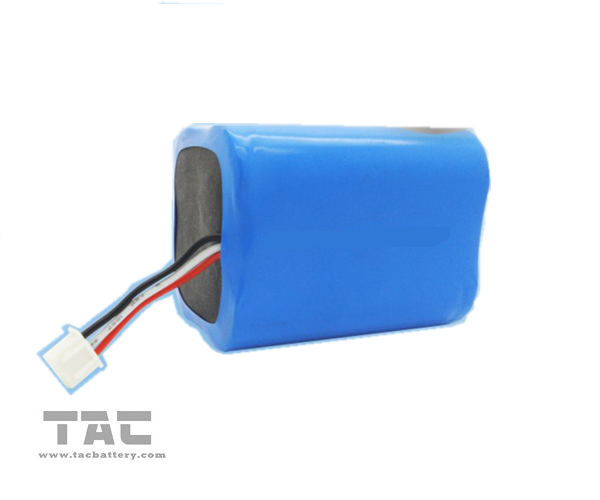

ICR18650 Lithium Ion Cylindrical Battery 7.4V 2600mah For Outdoor Lighting

Price Negotiable

Price: usd 3

MOQ: 500 pcs for single cell , 50pack for battery packs

Delivery Time: 7-10 days after order confirm for stock model

Brand: TAC OEM & ODM

Product Description

Feature for ICR18650 Lithium Ion Cylindrical Battery 7.4V 2600mah For Outdoor Lighting

1. The rated capacity:2600mAh,The nominal voltage:7.4V.

2. The size for th battery pack:Max 20.5mm*69mm*38.5mm

3. Ths single cell for the pack:energy type ICR18650 2600mAh,2S1P.

4. Have long cycle life.

5. The application for outdorr lighting lithium battery pack,back up battery for outdoor lighting.

Specification for ICR18650 Lithium Ion Cylindrical Battery 7.4V 2600mah For Outdoor Lighting

No.	Item	General Parameter	Remark
1	Rated Capacity	2600mAh	Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	2550mAh	Standard discharge(0.2 C5)after standard charge(0.2 C5)
3	Nominal Voltage	7.4V
4	Life Exception	Higher than 60% of the Initial Capacity of the Cells	◆Charge: CC@0.2C to 6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 5.0V ◆Temperature:20±5℃ ◆Carry out 500cycles
5	Discharge cut-off voltage	≥6V	5.0V( recommended)
6	Charging cut-off voltage	≤8.4V	7.3V (recommended)
7	Cell and assembly method	ICR18650EC-2600mAh	2S1P
8	Housing material	PVC

9	Standard charge	0.2C constant current(CC) charge to 8.4V,then constant voltage (CC)8.4V charge till charge current decline to	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 6.0V
11	Maximum Charge Current	1C
12	Continuous Discharge Current	1C
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx: 96.2g
16	Max.Dimension	High:69mm	For battery pack
		Thickness: 20.5mm
		Width: 38.5mm
