2600mAh Lithium Ion Battery Pack High Energy 3.7V ICR18650 Flat Top
2600mAh Lithium Ion Battery Pack High Energy 3.7V ICR18650 Flat Top
Features for 2600mAh Lithium Ion Battery Pack High Energy 3.7V ICR18650 Flat Top
1. Rechargeable 3.7V Li-Ion 18650 cell.
2. Low internal resistance.
3. High energy density, capacity, and lightweight.
4. Manufactured under ISO9001-2008 to assure quality.
5. deal for power bank,emergency power bank, digital camcorders, cameras, e-books or building laptop batteries.
6. Certification: UL,UN,ROHS
7 1 Year Warranty
8. MOQ: 50set
Cell Specification:
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
2600mAh |
Standard discharge(0.2C5A) after Standard charge |
|
Minimum |
2522mAh |
|||
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
|
3 |
Delivery voltage |
3.80~3.9V |
Within 10 days from Factory |
|
|
4 |
Charging Voltage |
4.2±0.03V |
By standard charge method |
|
|
5 |
Standard charging method
|
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
|
|
|
6 |
Standard discharging method
|
0.2C constant current discharge to3.0V, |
|
|
|
7 |
Cell Internal Impedance
|
≤50mΩ |
|
|
|
8 |
Maximum charge current
|
1C |
|
|
|
9 |
Maximum discharge current
|
1.0C |
|
|
|
10 |
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H |
|
|
Discharge |
-20~60℃ 60±25%R.H. |
|||
|
11 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
|
|

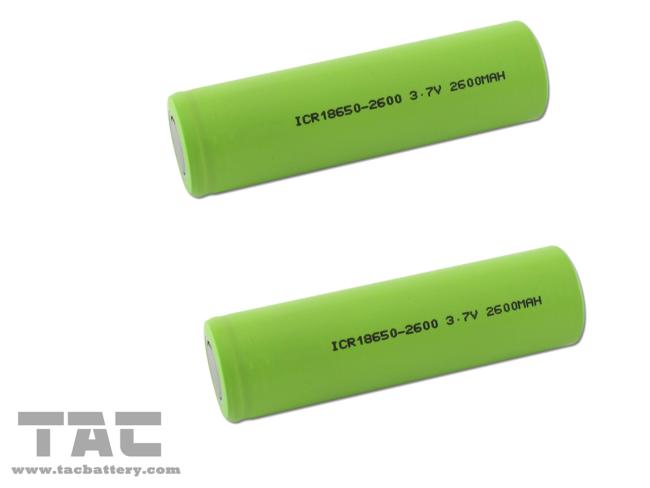

Picture for High Energy Type 3.7V ICR18650 2600mAh Lithium-Ion Battery Flat Top:

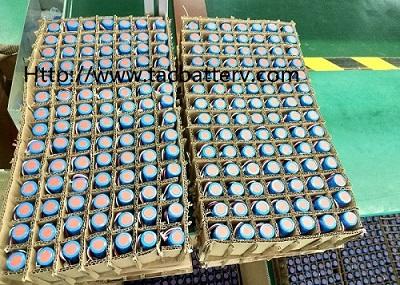

Packing Method
Period of Warranty
The period of warranty is one year from the date of shipment. Great Power guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.

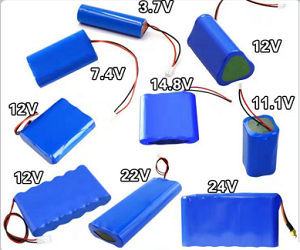

Various Battery Pack Made by 18650 Single cell

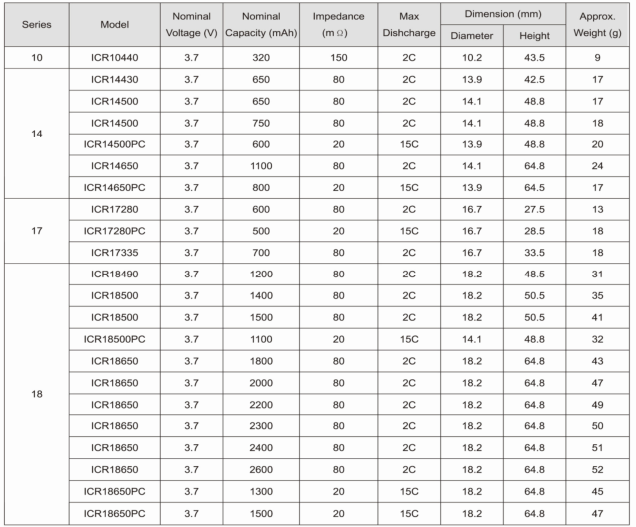

Lithium-ion Single Cell Production List
