LiFePO4 Battery Pack 48V 200AH 10KW for Household Energy Storage System
LiFePO4 Battery Pack 48V 200AH 10KW for Household Energy Storage System
Quick Detail for LiFePO4 Battery Pack 48V 200AH 10KW for Household Energy Storage System
|
NO |
Item |
Specification |
Remark |
|
Place of Origin: |
Guangdong China |
Brand Name: |
TAC |
|
Model Number: |
ESS 48V 10KW |
Capacity: |
200Ah |
|
Working current: |
48V |
Weight: |
Approx 155KG |
Features:
1. safer high quality lifepo4 battery cell inside
2. flexible design for the container
3. High level BMS system including of RS485 or CAN communication function
4. Grid –on /off system : it can use with grid-on position, grid-off position and grid-on/off combined position as well.
5 deep circle : over 2000 times base on 100% DOD
LiFePO4 Battery Pack 48V 200AH 10KW for Household Energy Storage System
|
No. |
Item |
Specification |
|
1 |
Product name |
48V 10KW home energy storage system |
|
2 |
Cell Model name |
LFP 3.2V/200Ah |
|
3 |
Assembling type |
16S1P |
|
5 |
Nominal voltage and Capacity |
51.2V/200Ah |
|
6 |
Rated capacity |
10KWh |
|
7 |
Range of working voltage |
43.2～58.4V |
|
8 |
Standard discharge current |
100A |
|
9 |
Max continuous discharge current |
120A |
|
10 |
Charging voltage |
58.4V |
|
11 |
Standard charging current |
50A |
|
12 |
Range of working temperature |
Charge/0℃~55℃ Discharge/-10℃~55℃ |
|
13 |
Storage environment humidity |
5%~95% |

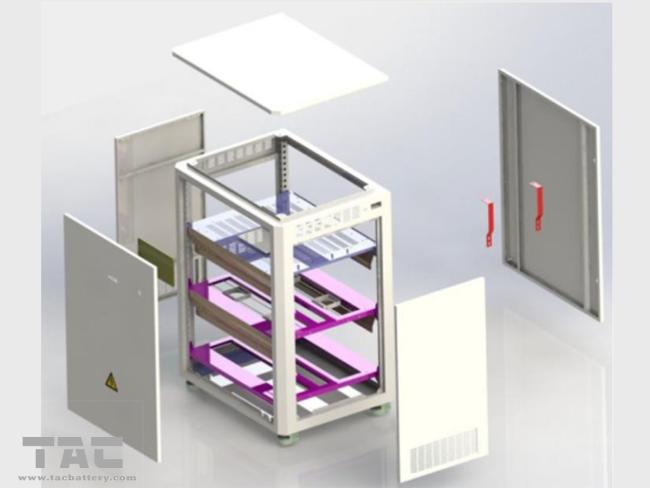

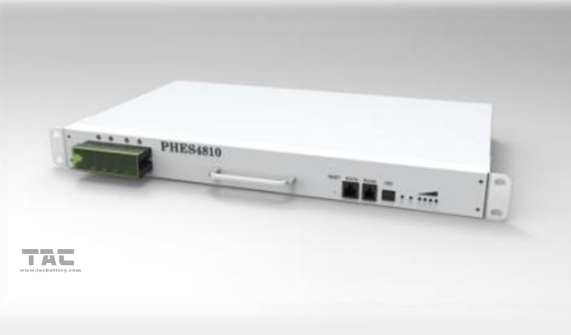

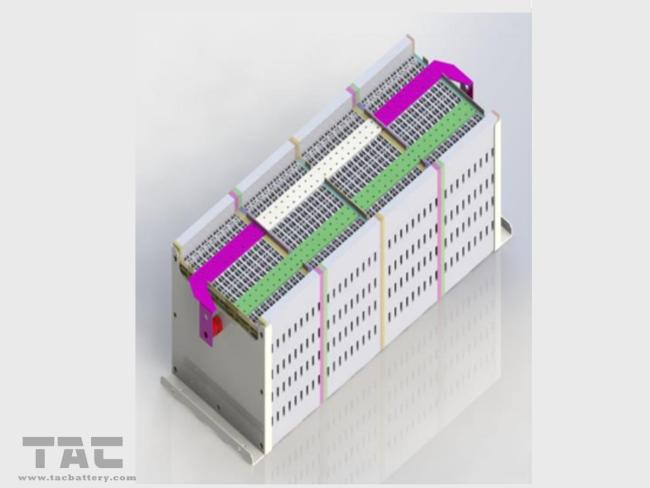

ESS 48V 10KWH Energy Storage System Inner Structure and Appearance:

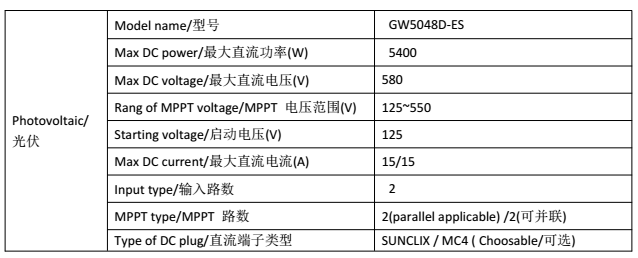

Inverter Performance

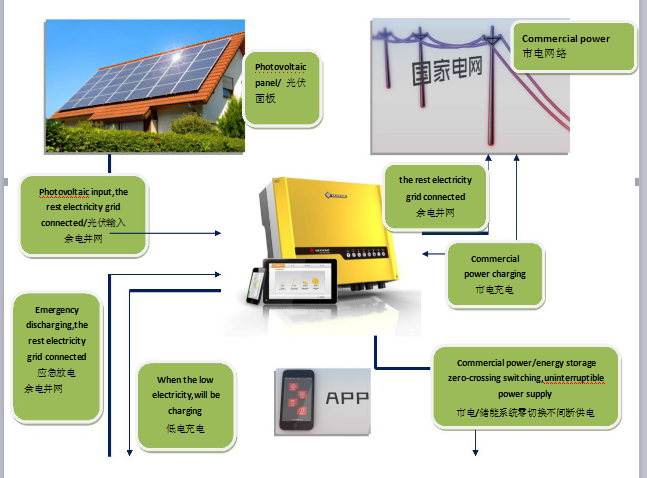

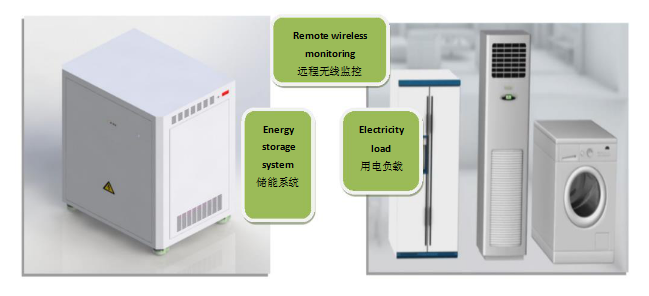

ESS Energy Storage System function and application:
Packing & Delivery
Packing:
Inner packing material: EPE foam and seven layers of corrugated packaging on the outside.
![]()
Delivery:
UPS / FEDEX / DHL / EMS etc. for battery samples shipping, Bulk order by Air or by ship base on your quantity
Other battery shipping terms can also be specified.
delivery date: 20-30 days after the order confirm
Our Service
More than 5000 models of battery with different capacity for choice.
Lithium ion and LiFePO4 battery with flexible shapes and size
24 hours service
OEM, ODM, Customized Design
Samples are available.

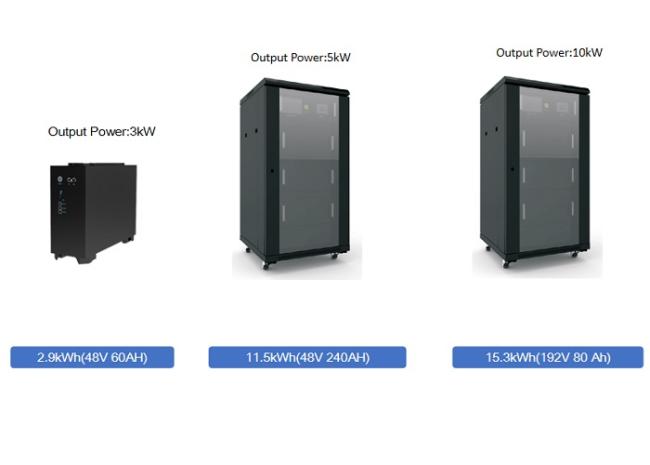

Other similar model photo

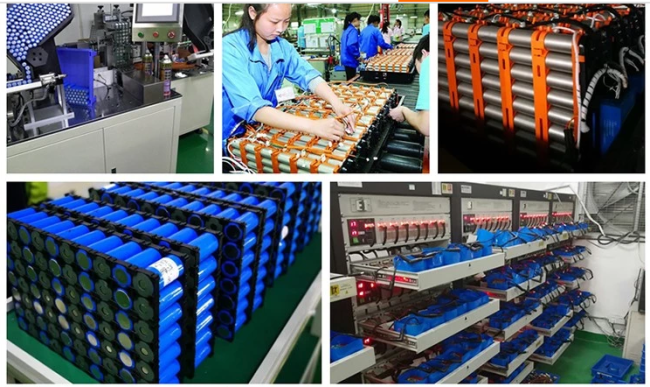

HK TAC Factory Picture
