Portable Battery Pack 12.8V 4.5AH LiFePO4 High Power UPS 18650 4S3P
Portable Battery Pack 12.8V 4.5AH LiFePO4 High Power UPS 18650 4S3P
Quick Detail:
|
Place of Origin: |
Guang dong China |
Brand Name: |
TAC |
|
Model Number: |
12.8V 4.5Ah |
Composed Type: |
4S3P |
|
Rated Capacity: |
4.5Ah |
Weight: |
0.6KG |
|
Size: |
customized |
Voltage: |
12.8V |
|
Cycle Life: |
>2000times |
Durability: |
High capacity longer time |
|
OEM & ODM: |
Support |
Packing: |
PVC Packing |
|
Warranty: |
12months |
Environmental Compliance: |
ROHS, REACH |
Features:
1. Nominal Voltage12.8V,Rated Capacity 4.5Ah meet most device working require
2. Support 5C discharge for high power UPS to meet the big current discharge require
3. Application:Back up Power,Power for LED lights, High Power UPS,Power for Solar
4. LiFePO4 Lithium Battery pack for ups IFR18650 4S3P ,proven technique for cylindrical cell
5. Deep circle and long life over 2000times base on DOD 80%.
6. Certification: UL,UN,ROHS for cell and support various certification for pack
7 1 Year Warranty and continue serve of after sale for the production
8. Small MOQ: 50set

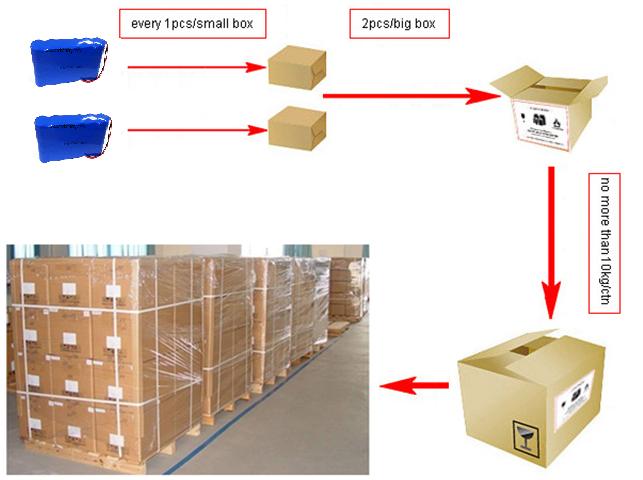

Packaging & Delivery:

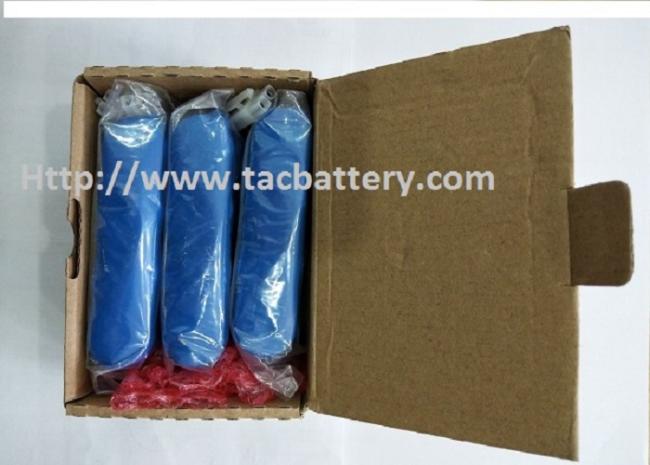

- Each battery pack packing by sponge bag
- 3-5 set for one inner box , support the display
- 5=8 box for one carton ,support the oem printing carton
Delivery the cargo for normal standard production with 10 days and 25-30 days for specially OEM order
Specifications for Portable Battery Pack 12.8V 4.5AH LiFePO4 High Power UPS 18650 4S3P
|
No.
|
Item
|
General Parameter
|
Remark |
|
1 |
Combination method |
4S3P |
|
|
2 |
Rated Capacity |
1.5 Ah |
Standard discharge after Standard charge(package) |
|
3 |
Nominal Voltage
|
12.8V |
Mean Operation Voltage |
|
5 |
Discharge cut-off voltage
|
10.0V |
10.0V(recommended) |
|
6 |
Charging cut-off voltage
|
14.6V |
14.6V(recommended) |
|
7 |
Cell and assembly method
|
IFR18650EC-1.5AH |
4S3P |
|
8 |
Maximum Charge Current
|
4.5A |
|
|
9 |
Maximum Discharge Current
|
4.5A |
|
|
10 |
Operation Temperature Range
|
Charge: 0~45℃ |
60±25%R.H.
|
|
Discharge: -10~50℃ |
|||
|
11 |
Storage Temperature Range
|
Less than 1 year : 0~25℃
|
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5~35℃ |
|||
|
8 |
Packing material
|
PVC shrink |
|
|
9 |
Weight |
600g |
|
|
10 |
Pack Dimension
|
High/:69mm |
max size |
|
Width/:58mm |
|||
|
Length/:76mm |
FAQ
Q1:Why choose Tac Battery?
1.Quick response to clients' enquiry within 24hrs via Email FB Linkedin and so on
2.Strong R&D capability, all kinds of latest products available cover lithium-ion polymer lifepo4 battery cell and pack including of the BMS
3.More than 10 years experience in producing battery products for various application.
4.promised the high quality and long-term cooperation to reach win-win relationship
Q2:Are you a Factory or trading company?
We are manufacturer , we have 4 factory which is located in guangzhou zhuhai shenzhen henan
Q3: When will the products be shipped out if the order has been placed?
We promise we do delivery our battery in 7 days for the single cell and it will take 28 days for the customized times .
Q4: What is your quality control process?
We are certified with ISO-140001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been shipped out.
Q5: What Certificates do you have?
Our batteries have been tested by REACH UN38.3 UL BIS Standards for single cell
And we support to arrange specially certification with your require

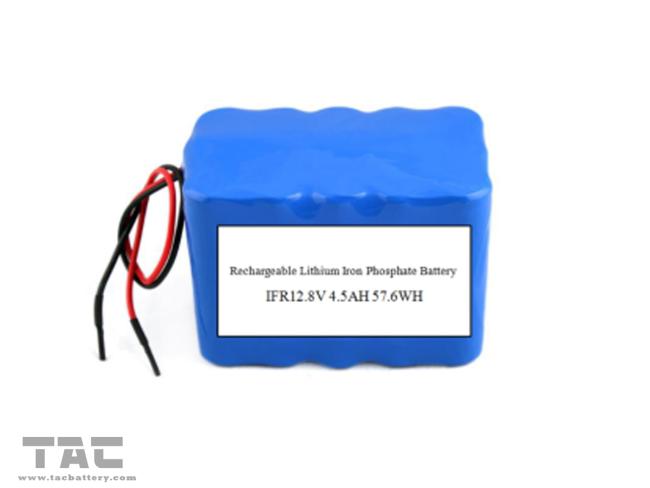

Photos for Portable Battery Pack 12.8V 4.5AH LiFePO4 High Power UPS 18650 4S3P

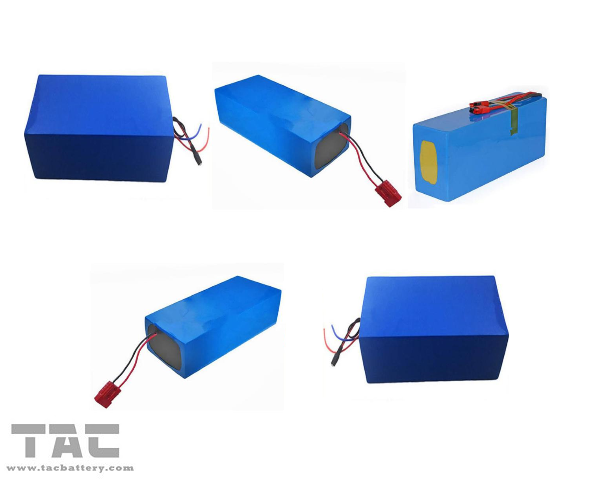

Similar Production photos
