12V Rechargeable Lithium Ion Cylindrical Battery Pack 18500 for Solar Lighting
12V Rechargeable Lithium Ion Cylindrical Battery Pack 18500 for Solar Lighting
Quick Detail for 12V Rechargeable Lithium Ion Cylindrical Battery Pack 18500 for Solar Lighting
|
Place of Origin: |
Guangdong China |
Brand Name: |
TAC |
|
Type: |
LiFePO4 Battery Pack |
Weight: |
932G |
|
Rated Capacity: |
5Ah |
Standard Voltage: |
12.8V |
|
Usage: |
Home Solar Light |
Cell: |
IFR18500 |
|
Cycles: |
2000 |
Assembling: |
4S5P |
|
OEM & ODM: |
Support |
Packing: |
PVC Packing |
|
Warranty: |
12months |
Environmental Compliance: |
ROHS, REACH |
Features
Rechargeable Litium ion (Li-ion) cells have a negative electrode (anode) made from lithium compunds.
Lithium is a highly reactive material and is much lighter than hydrogen-absorbing metal alloy of NIMH negative electrode .
This leads to higher gravimetric energy densities for the LI-ION cell .
Cell can stay in storage for 12 months without requiring maintenance .
Cycle life is more than 500 cycles .
Cell Specification for 12V Rechargeable Lithium Ion Cylindrical Battery Pack 18500 for Solar Lighting
|
No. |
Items |
Specification |
Remark |
|
|
1 |
Nominal Capacity |
1000mAh |
0.5C Standard discharge |
|
|
2 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
3 |
Delivery voltage
|
3.2~3.3V
|
Within 10 days from Factory
|
|
|
4 |
Charge current
|
0.5C |
500mA
|
Standard charge, charge time about 6h(Ref)
|
|
1C
|
1000mA
|
Rapid Charge, charge time about: 1.5h(Ref) |
||
|
5 |
Standard discharging method |
0.5C constant current discharge to2.0V,
|
|
|
|
6 |
Maximum charge current
|
1C
|
1000mA
|
|
|
7 |
Maximum discharge current
|
5C |
5A
|
|
|
8 |
Operation Temperature and relative humidity Range
|
Charge
|
0~45℃ 60±25%R.H.
|
|
|
Discharge |
-20~60℃ 60±25%R.H.
|
|||
Battery Pack specifications for 12V Rechargeable Lithium Ion Cylindrical Battery Pack 18500 for Solar Lighting
|
No. |
Items |
Specification |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C
|
≥4900mAh
|
Standard discharging method
|
|
2 |
Battery Voltage
|
12.8-13.2V |
Delivery Voltage, Within 10 days from Factory
|
|
3 |
Battery pack Dimensions |
Thickness |
60mm |
|
Width |
135mm |
||
|
Height |
78mm |
Picture for Rechargeable Lithium Iron Phosphate Battery Pack 12.8V 5AH for Home Solar Light

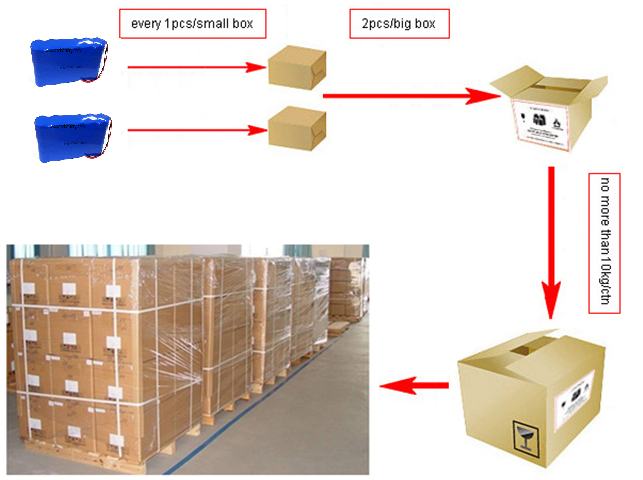

Packaging Description & Delivery Time
Single cell Shipped in 5-7 days after full payment
Application
Bright flashlight, headlights,Mobile medical equipment,household electrical appliances
Certification
UN38.3 UL1642 UL2054
Reach Rohs
Bis KC for part of model

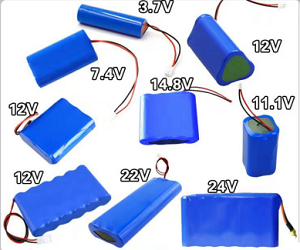

You May Need More Model
