12V LiFePO4 Battery Pack 75AH With BMS For Home Solar Light System
12V LiFePO4 Battery Pack 75AH With BMS For Home Solar Light System
Feature for 12V LiFePO4 Battery Pack 75AH With BMS For Home Solar Light System
- Specially design for Government projects
- Safer than normal lithium-ion battery
- The battery with super Battery Manage System and wire connector assebmled with customer require
- Deep circle 1200 -2000times and low self discharge performance
Quick Detail:
| Place of Origin: | Guang dong China | Brand Name: | TAC |
| Model Number: | 12.8V75AH | Rated Capacity: | 75Ah |
| Size: | customized | Voltage: | 3.2V |
| OEM & ODM: | Support | Packing: | PVC Packing |
| Warranty: | 12months | Environmental Compliance: | ROHS, REACH |
Cell Spec for 12V LiFePO4 Battery Pack 75AH With BMS For Home Solar Light System
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
3000mAh |
0.2C Standard discharge 0.2C |
|
| 2 |
Minimum Capacity
|
2900mAh | ||
| 3 |
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
| 4 |
Charge Voltage
|
3.65V±0.03V |
By standard charge method
|
|
| 5 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
0.2C constant current3.65VConstant voltage and current≤0.01C About the time 6h-7h |
|
| 6 |
Charge current
|
0.2C | 600mA |
Standard charge, charge time about 6h(Ref)
|
| 0.5C | 1500mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 7 |
Standard discharging method
|
0.2C constant current discharge to2.0V, | 0.2C Constant current discharge 2.0V |
|
| 8 |
Cell Internal Impedance
|
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Battery Pack Spec:
|
No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Combination method
|
4S25P
|
||
| 2 |
Combination standard
|
Capacity difference≤2% |
Combination after 0.15C discharge to 2.5V
|
|
| Resistance difference ≤10mΩ | ||||
| Voltage difference≤8mV | ||||
| 3 |
Rated Capacity
|
Typical
|
75Ah |
Standard discharge after Standard charge(package)
|
|
Minimum
|
72.5Ah | |||
| 4 |
Nominal Voltage
|
12.8V |
Mean Operation Voltage
|
|
| 5 |
Voltage at end of Discharge
|
10V |
Discharge Cut-off Voltage
|
|
| 6 |
Charging Voltage
|
14.8V | ||
| 7 |
Internal Impedance
|
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
|
|
| 8 |
Standard charge
|
Constant Current 15A Constant Voltage14.6V 0.01CA cut-off
|
Charge time : Approx 6 h
|
|
| 9 |
Standard discharge
|
Constant current:15A end voltage 10V
|
||
| 10 |
Maximum Continuous Charge Current
|
15A | ||

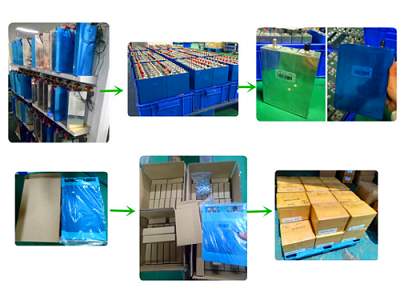

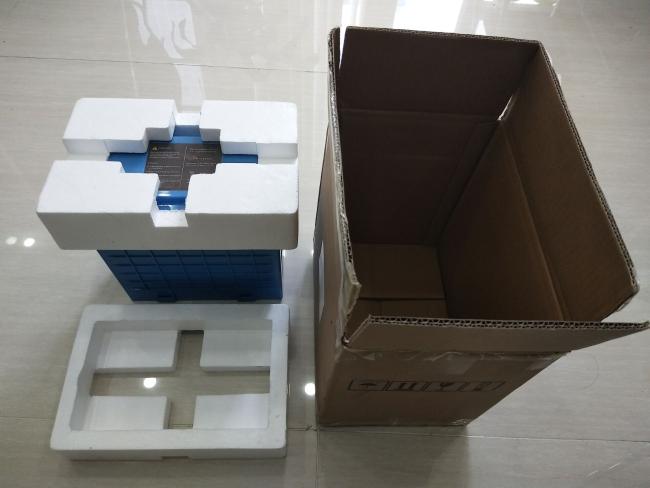

Packaging & Delivery
According of the transportation rule , the battery pack have to pack individual avoid short cicle
the total weight for each carton less than 6 kgs.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.
Period of Warranty
The period of warranty is 18 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
