Cylindrical ICR10440 Lithium Ion Cylindrical Battery 3.7v 600mah For Bicycle Headlight
Cylindrical ICR10440 Lithium Ion Cylindrical Battery 3.7v 600mah For Bicycle Headlight
Features:
1. ICR10440 Cylindrical Rechargeable Lithium ion Battery 3.7v 600mAh li-ion Battery
2. ICR10440 2P 600mAh Landscape , Intermediate outlet.
3. Lightweight and small in size
4. High-temperature performance
5. Low self-discharge and good discharge performance at low-temperature
Quick Detail for Cylindrical ICR10440 Lithium Ion Cylindrical Battery 3.7v 600mah For Bicycle Headlight
| Place of Origin: | Guang dong China | Brand Name: | TAC-PLIC0841 |
| Model Number: | ICR10280 3.7V 600mAh | Nominal Voltage: | 3.7V |
| Nominal Capacity: | 600mAh | Type: | Li-ion battery |
| Dimension: |
D；10.3±0.2mm H:43.8±0.3mm |
Certification: | UN, ROHS |
| OEM & ODM: | Support | Warranty: | 12months |
Packaging & Delivery for Cylindrical ICR10440 Lithium Ion Cylindrical Battery 3.7v 600mah For Bicycle Headlight

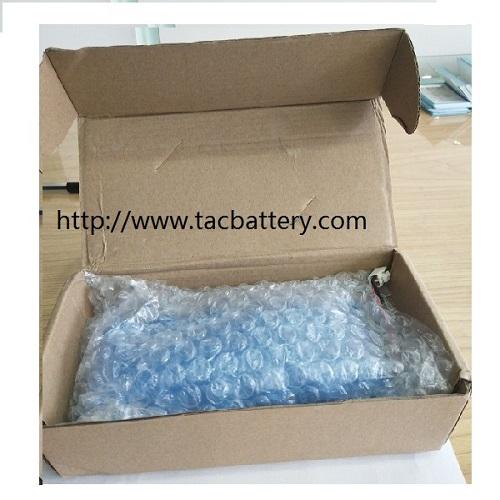

| Packaging Details: | one set battery pack was packed in thick sponge bag , 5 set for one box , 6 box for one standard paper carton |
| Delivery Detail: |
within 7 days after order confirm 15-30 days for OEM ODM order |
ICR10440 2P 3.7V 600mAh Li-ion Battery Specification
|
No.
|
Items |
Specifications
|
Remark
|
|
| 1 |
Nominal Capacity
|
300mAh
|
0.2C Standard discharge
|
|
| 2 |
Minimum Capacity
|
290mAh | ||
| 3 |
Nominal Voltage
|
3.7V
|
Mean Operation Voltage | |
| 4 |
Delivery voltage
|
3.70~3.90V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
4.2V±0.03V
|
By standard charge method
|
|
| 6 |
Charge current
|
0.2C
|
60mA
|
Standard charge, charge time about 6h(Ref)
|
|
0.5C
|
150mA
|
Rapid Charge, charge time about: 3.0h(Ref)
|
||
| 7 |
Cell Internal Impedance
|
≤130mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
| 8 | Dimension: |
D:10.3±0.2mm
|
||
|
H;43.8±0.3mm
|
||||
Applications:
- Golf trolleys, Golf carts,
- Telecommunication equipment
- Electric equipment and telemeter equipment
- Light equipment, dc 12v led lights
- Wireless lawn movers vacuum cleaner and washing machine
- oys and consumer electronics
- Portable power tools measuring and medical equipment Portable video camera portable

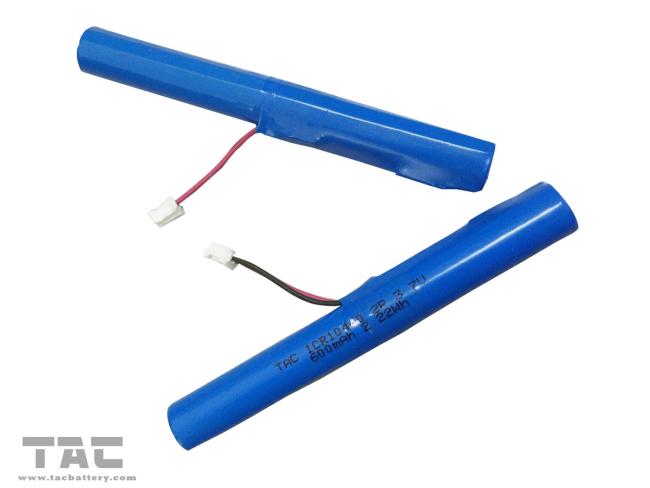

Picture for ICR10440 2P 3.7V 600mAh Li-ion Battery

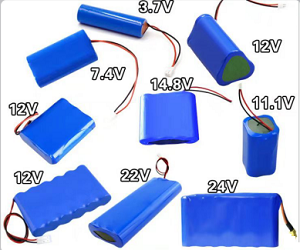

Lithium Battery Battery Pack
