High Power ICR18650 3.7V 2600mAh 9.62Wh Lithium Ion Cylindrical Battery
High Power ICR18650 3.7V 2600mAh 9.62Wh Lithium Ion Cylindrical Battery
Quick Detail for High Power ICR18650 3.7V 2600mAh 9.62Wh Lithium Ion Cylindrical Battery
| Model Number: | ICR18650 3.7V 2600mAh | Brand Name: | TAC-PIFC0820 |
| Nominal Voltage: | 3.7V | Rated Capacity: | 2600mAh |
| Type: | Li-ion Battery | Dimension: | Φ18.2×65mm |
| Weight: | About 45.8g | Certification | UN, ROHS,REACH |
| OEM & ODM: | Support | Warranty: | 12months |
|
Features: 1. Li-ion Battery ICR18650 2600mAh 3.7V 9.62Wh Discharge Current 5C 2. High power, 5C discharge current. 3. High energy density . 4. Low self discharge. 5. No memory effect, 2000 times cycle-life. |
|||
Packaging & Delivery
| Packaging Details: |

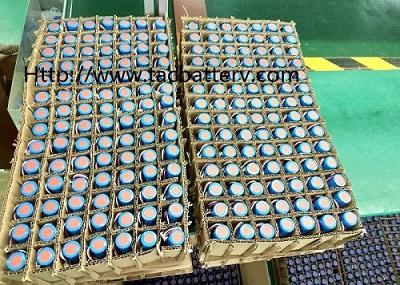

standard packing follow Samsung cell 50pcs for one paper tray 200pcs for one carton |
| Delivery Detail: | within 7 days |
Specification for High Power ICR18650 3.7V 2600mAh 9.62Wh Lithium Ion Cylindrical Battery
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
2600mAh |
0.5C Standard discharge
|
|
| 2 |
Minimum Capacity
|
2500mAh | ||
| 3 |
Nominal Voltage
|
3.7V |
Mean Operation Voltage
|
|
| 4 |
Voltage of end of discharge
|
2.75V |
Discharge cut-off voltage
|
|
| 5 |
Charge voltage
|
4.2V |
By standard charge method
|
|
| 6 |
Delivery voltage
|
3.6V-3.8V |
Within 10 days from Factory
|
|
| 7 |
Standard charging method
|
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C | ||
| 8 |
Charge current
|
0.5C | 1300mA |
Standard charge, charge time about 3.5h(Ref)
|
| 1C | 2600mA |
Rapid Charge, charge time about: 2h(Ref)
|
||
| 9 |
Standard discharging method
|
0.5C constant current discharge to 2.75V, | ||
| 10 |
Cell Internal Impedance
|
≤20mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|

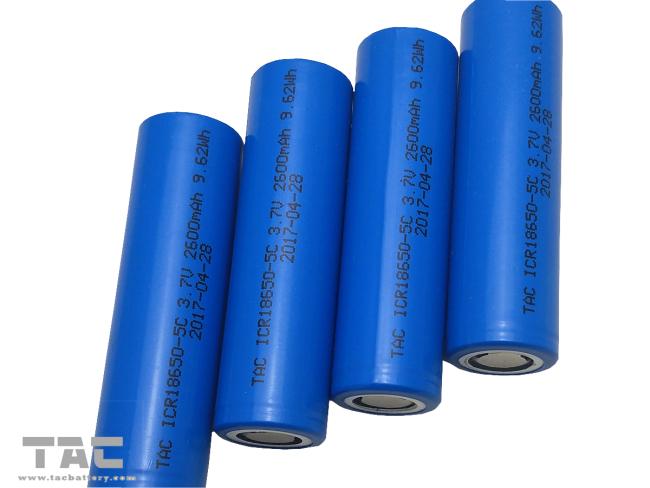

Picture for ICR18650 3.7V 2600mAh Cell Battery
Li-ion Battery Application:
- Medical devices
- Instruments and meters: water meter, gas meter.
- Electric transportation vehicles: electric bike, electric car, e-scooter, e-motor
- Power tools: electric drill, mower
- UPS, GPS
- Outdoor sports products: camping light, mountain bike light,
- solar emergency light, self-defense flashlight.
- Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone,
- power bank, portable DVD player.
- speaker, microphone, sound equipment, audio, Digital camera,
- Home appliances products: electric mop, electric vacuum cleaner,
- electric children toys, electric shoes, electric blanket.
- Light: headlamp, emergency light, solar flashlight, searchlight, bicycle light,
- LED light, military flashlight, high-end flashlight, high power flashlight, bright flashlight.

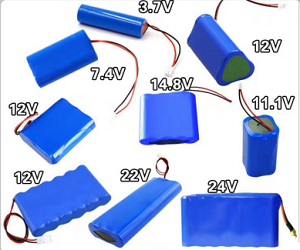

Lithium Battery Pack with ICR18650 3.7V 2600MAH single cell
Tag: High Power Li-ion Battery ICR18650 3.7V 2600mAh 9.62Wh Discharge Current 5C for Electric Vacuum Cleaner
