3.7V INR18650 Li-ion Rechargeable Battery 2S4P 7.4V10.4AH Power Bank
3.7V INR18650 Li-ion Rechargeable Battery 2S4P 7.4V10.4AH Power Bank
Features for 3.7V INR18650 Li-ion Rechargeable Battery 2S4P 7.4V10.4AH Power Bank
1. Normal voltage:7.4V , full charged voltage 8.4V
2. Normal capacity:10.4Ah ,Mini capacity 10.3AH
3.The battery pacck assembled by Lithium Ion 18650 cylindrical rechargeable cell
4. Higher energy density and lower weight than other types rechargeable batteries
5. Battery tested based on International Electric technical Commission (IEC) standard to ensure capacity, quality and life time
6. Protect circuit board protected
7. 1 Year Warranty
8. support low MOQ: 50set
Quick Detail:
| Place of Origin: | Guang dong China | Brand Name: | TAC-PLIP0862 |
| Model Number: | 7.4V10.4Ah | Rated Capacity: | 10.4Ah |
| Size: | customized | Voltage: | 7.4V |
| OEM & ODM: | Support | Packing: | PVC Packing |
| Warranty: |
12months
|
Environmental Compliance: | CE,ROSH,SGS,UL,MSDS |
|
|
|||
Packaging & Delivery:
| Packaging Details: |
the battery pack was protected by sponge bay one by one and 1 set for one inner box 5-8 box for one carton |
| Delivery Detail: | 100 sets within 7days after order confirmed |
3.7V INR18650 2S4P 7.4V10.4AH Power Bank Specification:
| No. | Item | General Parameter | Remark |
| １ | Rated Capacity | 10.4AH |
Standard discharge, Standard charge |
| ２ |
Minimal Rated Capacity
|
9.8AH | |
| ３ | Nominal Voltage | 7.2V | |
| 4 |
Standard charge
|
Constant current Constant Voltage End current(Cut off) |
0.2C(2080mA) 8.4V 200mA |
| 5 |
Standard discharge
|
0.2C(2080mA) 5.5V |
Constant current End voltage(Cut off) |
| 6 |
Maximum Charge Current
|
0.5C(5200mA) |
Charging cut-off voltage
|
| 7 |
Max Continuous Discharge Current
|
0.5C(5200mA) |
Discharge cut-off voltage
|
| 10 |
Cell and assembly method
|
2S4P | INR18650B4 3.7V 2600mAh |
| 11 | Internal resistance | ||
| 12 |
Housing material
|
PC LUPOY SC1004-KA02ML |
PMS Process Blue C RGB 0 139 204 HTML 008BCC CMYK 100 13 1 2 |
| 13 |
Operating Temp
|
0~45℃ | Charge |
| -20~60℃ | Discharge | ||
| 14 |
Storage Temp
|
-20~60℃ | 1 month |
| -20~45℃ | 3 month | ||
| -20~20℃ | 1 year | ||
| 15 | Weight | ||
| 16 | Max. Dimension | ||
| 18 |
Life Exception
|
≥80% of min | Cells shall be charged and discharged per standard charge and discharge 300cycles. |
| 17 | Charge ex-factory | ≥60% | |
| 18 |
Capacity of Storage
|
≥55% |
Normal storage after three months
|
The Application
The battery pack used for
Power bank
Order Process
- Issue the require for your project for example dimension, capacity ,voltage and so on you need
- We will issue the key data for the battery pack Please check the specification and confirm it
- We will provide proforma invoice for you ,Please check and confirm the Invoice.
- Please arrange the payment after you confirmed
- After payment , all goods will be sent to you in 35days
- OEM/ODM is welcomed.
Battery Show

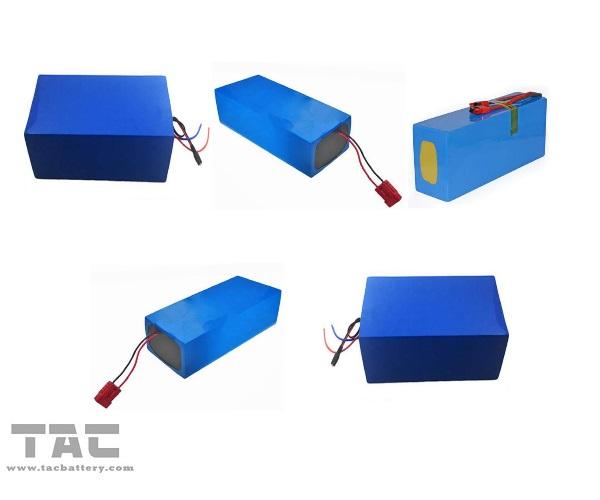

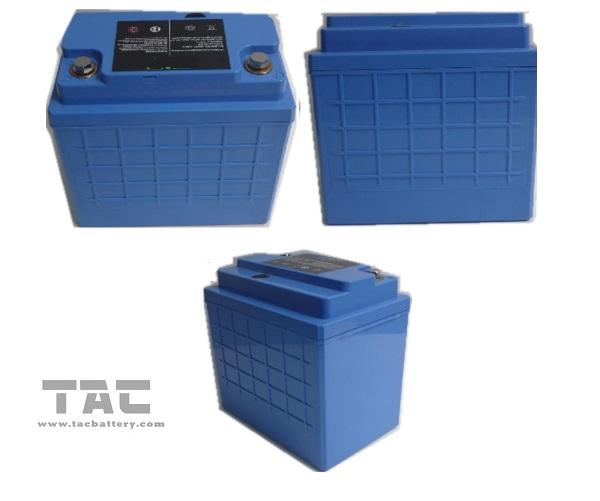

Lithium-ion Battery Pack with housing
Lithium-ion Battery Pack without housing
Why choose us
we are factory , we can guarantee our price is competitive with high quality.
- Standard QC process follow ISO140001, our QC staff will check quality one by one during the whole process
- We provide OEM service. Our factory can off OEM service to customer. Please offer us your LOGO & all OEM service for you .
- Each cells with high capacity of limited size.
- With cells to make a pack ,and between the cells, there is good quality match which is achieved through strict control technique procedure.
- Shortcut delivery ----we can supply you products within a week .
- Different capacity of same dimensions are available ---1800mAh, 2200mAh,2400mAh,2600mAh 2800mah 3000mah 3300mah and so on .
- Circumspect after service--if there is quality problem ,we can give you replacement.
