ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
Description for ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
1. Normal voltage:22.2V
2. Normal capacity:4400mAh
3. Long service life and economical
4. Excellent discharge characteristics
5. Long shelf life
6. Protect circuit board protected
7. Rcharge battery
8. 1 Year Warranty
9. MOQ: 50set
Quick Detail:
| Place of Origin: | Guang dong China | Brand Name: | TAC |
| Model Number: |
ICM22-4-E2 |
Rated Capacity: | 4400mAh |
|
Weight:
|
600g | Voltage: | 22.2V |
| OEM & ODM: | Support | Packing: | PVC Packing |
| Warranty: | 12months | Environmental Compliance: | BIS, ROHS, REACH |

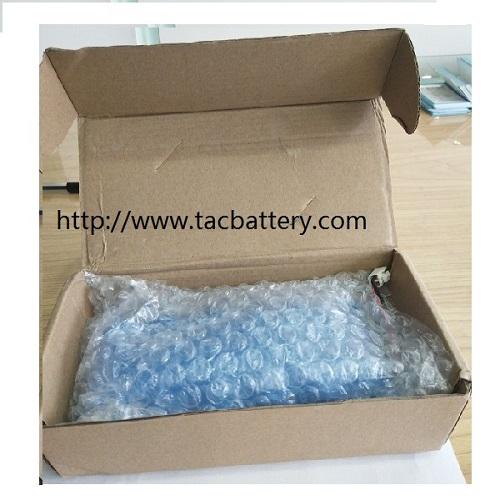

Packaging & Delivery:
| Packaging Details: | Standard Carton Package |
| Delivery Detail: | 100 sets within 7days |
ICR18650 22.2V 44Ah Cylindrical Li-ion Rechargeable Battery pack Specification:
|
No.
|
Item
|
General Parameter
|
Remark
|
| 1 |
Rated Capacity
|
4.4Ah |
Standard discharge(0.2C)after standard charge(0.2C)
|
| 2 |
Minimal Rated Capacity
|
4.2Ah | |
| 3 |
Nominal Voltage
|
22.2V | |
| 4 |
Cycle Life
|
Higher than 80% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 25.2V, then CV till current to 0.02C ◆Rest: 30min. ◆Discharge: 0.2C to 18.0V ◆Temperature:20±5℃ ◆Carry out 500cycles
|
| 5 |
Discharge cut-off voltage
|
18.0V | 18.0V(recommended) |
| 6 |
Charging cut-off voltage
|
25.2V | 25.2V(recommended) |
| 7 |
Cell and assembly method
|
ICR18650-2200mAh | 6S2P |
| 8 |
Packing material
|
PVC shrink |
Picture for Cylindrical Li-ion Rechargeable Battery pack
Key Applications:
Widely applied in POS system, Solar supply system, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, Portable equipment: Laptop, camcorder,emergency light , Military equipment: IR telescope, Medical devices, household appliances, small portable Power tools and etc.
Certification
UL for singlce cell
UN38.3 certfication for pack

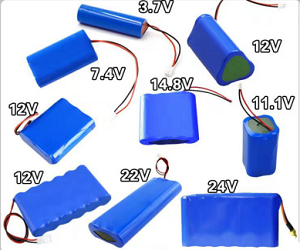

Similar Battery Pack for ICR18650
