Rechargeable Lithium Batteries IFR26650 3.2V 2300mAh 10C for Power Tool
Rechargeable Lithium Batteries IFR26650 3.2V 2300mAh 10C for Power Tool
Specification for Rechargeable Lithium Batteries IFR26650 3.2V 2300mAh 10C for Power Tool
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
2400mAh |
0.2C Standard discharge
|
|
| 2 |
Minimum Capacity
|
2350mAh | ||
| 3 |
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
3.2~3.3V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
| 7 |
Charge current
|
1C | 400mA |
Standard charge, charge time about 6h(Ref)
|
| 1C | 1000mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
10C constant current discharge to2.0V, | 10C | |
| 9 |
Cell Internal Impedance
|
≤20mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Performance of Charge and Discharge for IFR26650
| No. | Items | Specifications/ |
Remark
|
|
| 10 |
Maximum charge current
|
10C |
For continuous charging mod
|
|
| 11 |
Maximum discharge current
|
10C |
For continuous discharge mod
|
|
| 12 |
Operation Temperature and relative humidity Range
|
Charge/ |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
| Discharge/ |
-20~60℃ 60±25%R.H. |
|||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.
|
|
Features:
This cell is deep circle lifepo4 battery , the model is IFR26650 2300MAH 3.2V, the Max Max discharge current can reach 10C.The single cell can do the battery pack or solder the tabs and assemble to any pack with your require, the battery performance including Excellent abuse tolerance and environmentally friendly ,
Excellent calendar life, 10X cycle life vs. conventional lithium ion, With greater high power and energy density and lower impedance. the battery is normal and major production for us , so we can Offers an excellent combination of price-performance.
Application For Rechargeable Lithium Batteries IFR26650 3.2V 2300mAh 10C for Power Tool
- Portable high power devices Power tool
- Solar Product, GPS
- Stationary battery backup systems
- Grid stabilization energy storage systems
- Commercial truck and bus hybrid electric vehicles (HEVs)

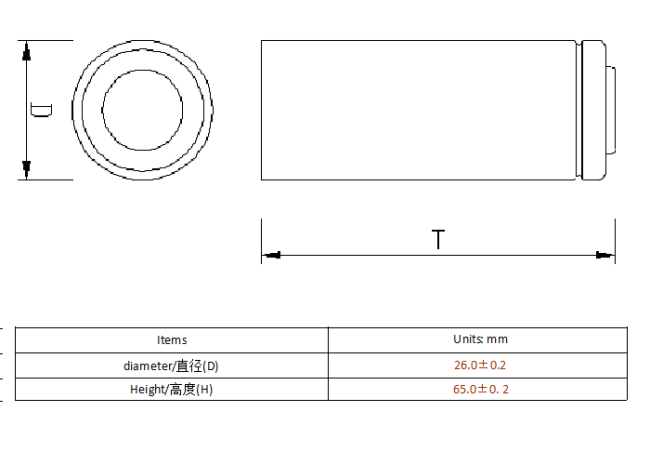

Drawing for Cell

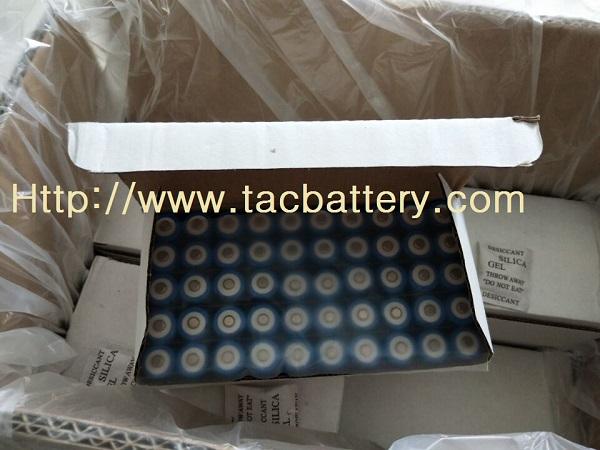

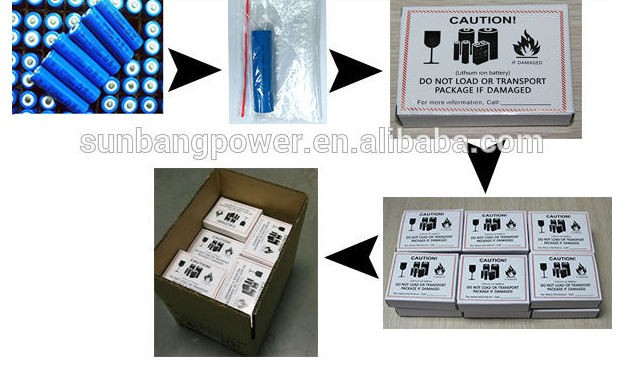

Packing for cell similar as below
10pcs in one inner box
8 box in one standard export carton

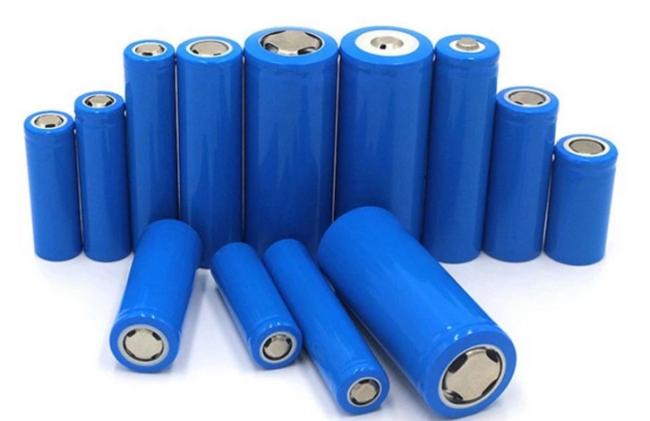

Other Cylindrical LiFePO4 Battery High power Energy Type:
|
Model |
Nominal |
Internal |
Capacity |
Cell Size(mm) |
Weight |
|
|
Voltage |
Resistance |
(mAh) |
(g) |
|||
|
(V) |
(Max mΩ) |
|
Diameter |
Height |
|
|
|
LFR14430 |
3.2 |
110 |
250 |
13.9 |
43.0 |
12 |
|
LFR14500 |
3.2 |
100 |
650 |
13.9 |
50.2 |
18 |
|
LFR15270 |
3.2 |
140 |
200 |
15.0 |
27.0 |
10 |
|
LFR18500 |
3.2 |
60 |
1000 |
18 |
50 |
32 |
|
LFR18500 |
3.2 |
80 |
1200 |
18 |
50 |
32 |
|
LFR18650 |
3.2 |
65 |
1400 |
18 |
64.8 |
39 |
|
LFR18650 |
3.2 |
65 |
1500 |
18 |
64.8 |
40 |
|
LFR18650 |
3.2 |
80 |
1700 |
18 |
64.8 |
41 |
|
LFR26650 |
3.2 |
20 |
3000 |
26 |
65.3 |
84 |
|
LFR26650 |
3.2 |
20 |
3300 |
26 |
65.3 |
86 |
Pictures:

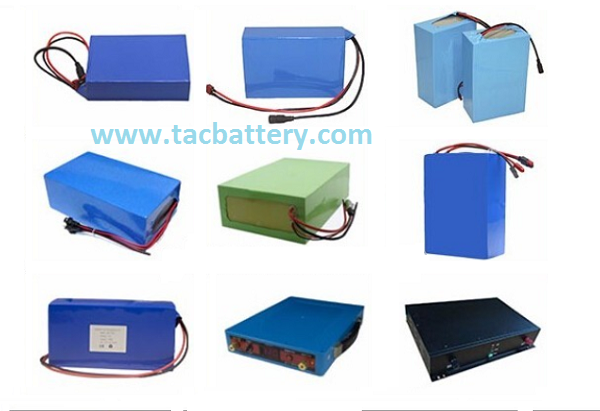

Lifepo4 Battery Pack with Lifepo4 26650
