AA Lithium Ion Cylindrical Battery 14500 800MAH 3.7V For Clipper and Massage Device

Price Negotiable
Price: usd0.8-2
MOQ: 500 pcs for single cell , 50pack for battery packs
Delivery Time: 7-10 days after order confirm for stock model
Brand: TAC OEM & ODM
Product Description

AA Lithium Batteries 14500 800MAH 3.7V Cell For Clipper and Massage Device


Feature for AA Lithium Batteries 14500 800MAH 3.7V Cell For Clipper and Massage Device


1. Item name :3.7V LIR14500/AA 800mAh,with the protect board wire and connector
2. 800mah is the highest capacity for same size , the cycle life is about 500 times.
3. A level  quality and the good price from manufacturer sales directly
4. whole system size including of ICR14250,ICR14500,ICR18650,ICR17500,ICR15270 and more


Specificaton for AA Lithium Batteries 14500 320MAH 3.7V Cell For Clipper and Massage Device




No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

800mAh

Standard discharge(0.2C5A) after Standard charge

Minimum

750mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2V



5

Internal Impedance

≤100mΩ

Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.2C5A
Constant Voltage 4.2V
0.01 C5A cut-off



7

Standard discharge

Constant current 0.2C5A
end voltage 3.0V



8

Fast charge

Constant Current 1.0C5A
Constant Voltage 4.2V
0.01 C5A cut-off



9

Fast discharge

Constant current 1.0C5A
end voltage 3.0V



10

Maximum Continuous Charge Current

1.0 C5A



11

Maximum Continuous Discharge Current

1.5 C5A



12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Bare Cell





Discharge: -10~60℃



13

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.
at the shipment state





less than 3 months: -20~40℃







Less than 7 day : -20~65℃



14

Cell  Dimension

High:Max50.3 mm

Initial  Dimension





Diameter:Max14.2 mm

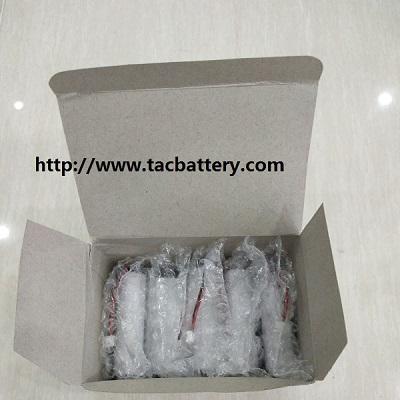

Packing and Delivery

the battery put in independent sponge bag ,5-10 pcs in one box , and then 5 -8 box in outer carton
the photos similar as below



Delivery time

The battery will ship out with 15 days after the order confirm
we support OEM and ODM order , 25-35 days with your require

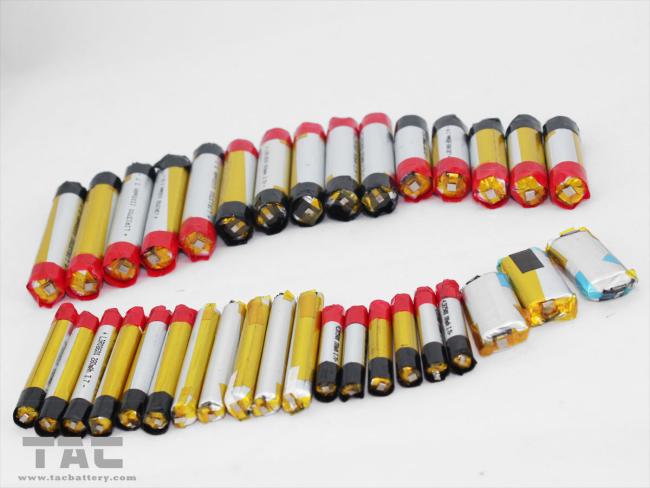

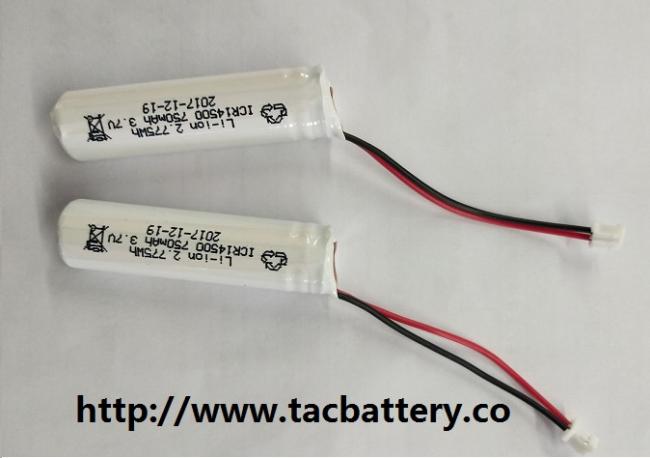

Pictures:



similar production with AA Lithium Batteries 14500 320MAH 3.7V Cell For Clipper and Massage Device





Maybe you need seeking for 3.2V AA 14500 Cell

More detail pls click below

https://www.tacbattery.com/sale-11287638-blue-pvc-3-2v-lifepo4-battery-aa-14500-600mah-for-solar-lamp-and-led.html









Q: Are you manufacturer or trading company?
A: HKTAC is over sale for famous manufacturer called Greatpower Group, assembly entity for battery packs, and a distributor of branded cells and battery accessories based on customer’s needs.
Q: Can you agree with OEM/ODM battery pack ?
A: Yes, OEM/ODM battery packs are warmly welcome.
Q: Do you have battery packs for famous company
A: Yes, we are supplier for Honywell etc
Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Max Size of the battery pack so that we can suggestion the reasonable cell
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. BMS performance require
Q: Can you print my logo on the battery jacket or housing?
A: Yes, custom logo service is available.
Q: Is sample order acceptable?
A: sure, sample orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Pls just confirm our PI if you need
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, LC
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.

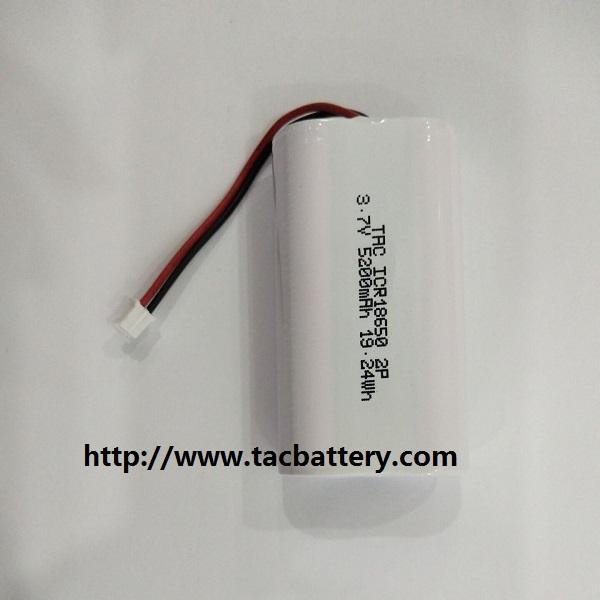

Similar production for same size

Lithium Ion Polymer battery  14500p 800mah 3.7v
