Lithium Ion Cell 10280 160-200mah 3.7V For Recording Pen Or Massage Pen
Lithium Cell 10280 160-200mah 3.7V For Recording Pen Or Massage Pen
Description for Lithium Cell 10280 160-200mah 3.7V For Recording Pen Or Massage Pen
- The model name: 10280
- Nominal Voltage:3.7V, rated capacity:160-200mAh
- Application for electronic lock / recording pen/ Bluetooth Mouse.
- The max dimension: D: 10.1mm*H:28mm.
- cycle life : 500 times, 80% rest capacity
- Approved the certificate UL1642,ROHS,
Specification for Lithium Cell 10280 160-200mah 3.7V For Recording Pen Or Massage Pen
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
160mAh |
0.2C Standard discharge 0.2C |
|
| 2 |
Minimum Capacity
|
154mAh | ||
| 3 |
Nominal Voltage
|
3.7V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
3.70~3.90V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
4.2V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
≤0.01C |
|
| 7 |
Charge current
|
0.2C | 40mA |
Standard charge, charge time about 6h(Ref) |
| 0.5C | 100mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
0.2C constant current discharge to3.0V, | ||
| 9 |
Cell Internal Impedance
|
≤150mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Charge and Discharge Performance With IEC Standard
| No. | Items | Specifications |
Remark |
|
| 10 |
Maximum charge current |
1C | 160mA |
For continuous charging mod |
| 11 |
Maximum discharge current |
1.5C | 320mA |
For continuous discharge mod |
| 12 |
Operation Temperature and relative humidity Range
|
Charge/ |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Discharge/ |
-20~60℃ 60±25%R.H. |
|||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months. |
|
Use for
The small size lithium-ion battery can used for Recording Pen Or Massage Pen

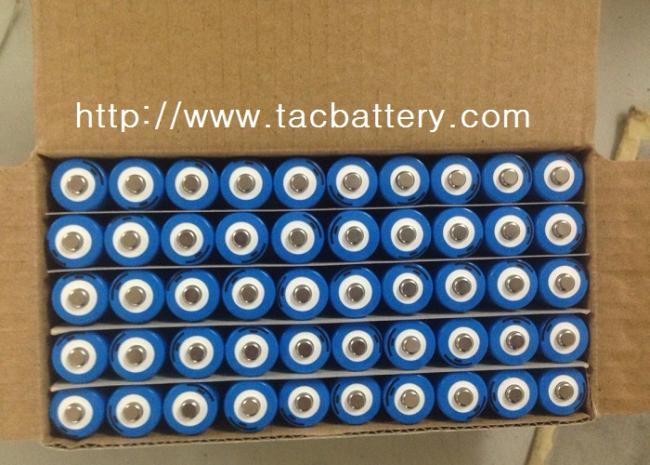

Package
The battery cell put in the inner box , 50pcs in one inner box and then 8 box in one carton
Delivery Lead Time
This is model is specially size, we can ship out it within 7 days after your order confirm
by express air or ocean base on your detail quantity

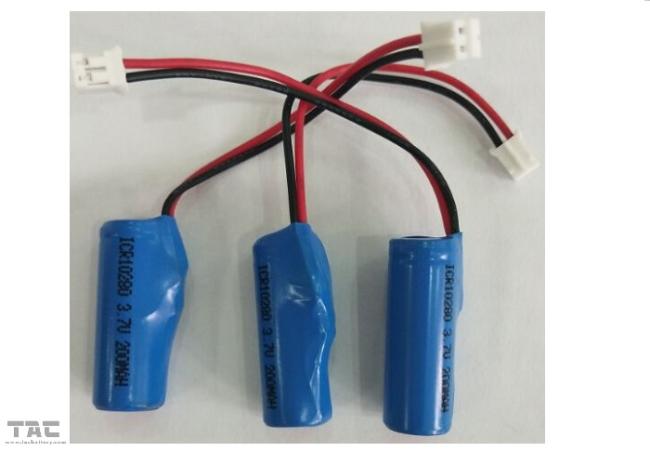

Battery Photo
The cell can be packed with connector as below or assemble the other pack with your require

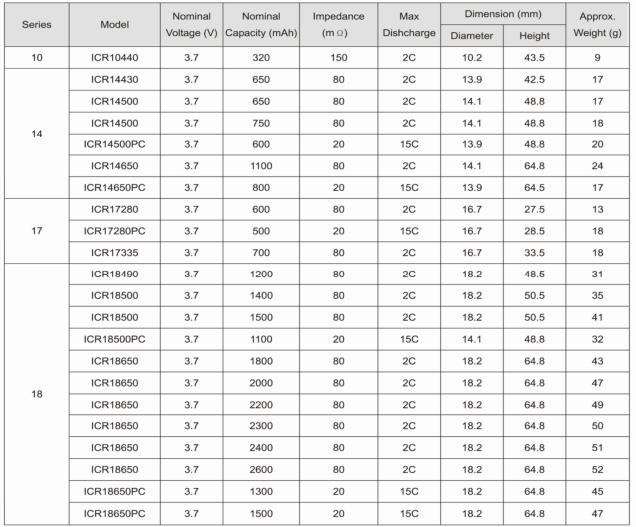

More product list for Lithium Ion Cell
ICR21700 4800MAH
ICR26650 5000MAH
And More-----
