Ni MH Batteries for Cordless Power Too With lHigh Discharge Current
Price:
usd5-10
MOQ:
500 PCS
Delivery Time:
10-25 days
Brand:
TAC
Product Description
NiMH Batteries for Cordless Power Too With lHigh Discharge Current
Spcification for NiMH Batteries for Cordless Power Too With lHigh Discharge Current
| Desription | Specification | ||
| Model | 6PH-H-AA2300H-W-X22 | ||
| Size | AA | ||
| Dimensions | Length (mm) | Max44 | |
| Width(mm) | Max 30 | ||
| Height(mm) | Max 53.5 | ||
| Weight(g) | Approx. 195g | ||
| Nominal Voltage(V) | 7.2 | ||
| Nominal capacity(mAh) | 2300 | ||
| Internal Impedance(mΩ) | ≤400 | ||
| Discharge Cut-off Voltage | 6.0V | ||
| Ambient temperature | Charge | standard | 0℃ to 40℃ |
| fast | 10℃ to 40℃ | ||
| Discharge | -10℃ to 50℃ | ||
| Storage | ＜1 year | -10℃ to 30℃ | |
| ＜3 months | -10℃ to 40℃ | ||
| The relative humidity should keep with in 65±20% | |||
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong terminals connected.
- Avoid shorting the battery.
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or model batteries.
- Keep out of the reach of children.
Storage
Store the battery in a cool, dry and well-ventilated area.
Disposal
- Regulations vary for different countries.
- Dispose of in accordance with local regulations.

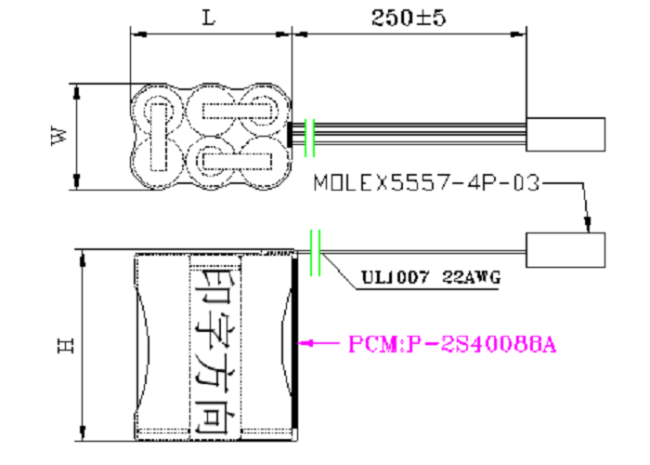

Drawing for the Nimh Battery Pack

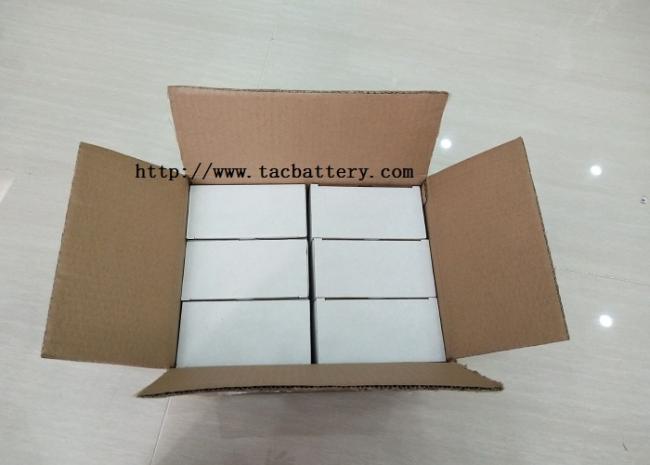

The Package For Battery Pack
5 set in one inner box 8 box in one export outer carton
Other model for SC size , the capacity from 1500mah to 3500mah
| Type | Model | Size |
Nominal capacity(mAh) |
Dimensions |
The max discharge current(A) |
Raoid Charge | Weight | ||
| Height | Diameter | Current | Time | ||||||
| SC | 1500 | SC | 1500 | 33 | 23 | 22.5 | 1500 | 1.2 | 35 |
| SC | 1600 | SC | 1600 | 33 | 23 | 24 | 1600 | 1.2 | 36 |
| SC | 1800 | SC | 1800 | 33 | 23 | 27 | 1800 | 1.2 | 38 |
| SC | 2000 | SC | 2000 | 33 | 23 | 30 | 2000 | 1.2 | 40 |
| SC | 2100 | SC | 2100 | 33 | 23 | 31.5 | 2100 | 1.2 | 41 |
| SC | 1300 | SC | 1300 | 43 | 23 | 19.5 | 1300 | 1.2 | 40 |
| SC | 1600 | SC | 1600 | 43 | 23 | 24 | 1600 | 1.2 | 44 |
| SC | 1800 | SC | 1800 | 43 | 23 | 27 | 1800 | 1.2 | 46 |
| SC | 2000 | SC | 2000 | 43 | 23 | 30 | 2000 | 1.2 | 48 |
| SC | 2200 | SC | 2200 | 43 | 23 | 33 | 2200 | 1.2 | 50 |
| SC | 3200 | SC | 3200 | 43 | 23 | 48 | 3200 | 1.2 | 60 |
| SC | 3300 | SC | 3300 | 43 | 23 | 49.5 | 3300 | 1.2 | 61 |
| SC | 3600 | SC | 3600 | 43 | 23 | 54 | 3600 | 1.2 | 65 |

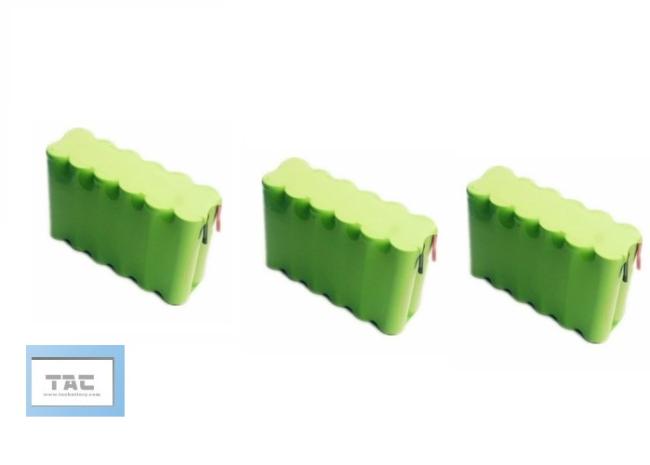

Photos for similar NIMh battery Pack
