18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp
18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp
Base Data for 18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp
The battery pack can replace VRLA/SLA (Lead Acid) battery.
|
Item |
General Parameter
|
Remark |
|
Rated Capacity
|
1.0Ah |
Standard discharge(0.5C)after standard charge(0.5C)
|
|
Minimal Rated Capacity |
0.95Ah |
|
|
Nominal Voltage |
12.8V |
|
|
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
Charge: CC@0.5C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.5C to 10.0V Temperature:20±5℃ Carry out 800cycles |
|
Discharge cut-off voltage |
none |
No over-discharge protection,10.0V recommended |
|
Charging cut-off voltage
|
none |
No over-charge protection,14.6V recommended |
|
Cell and assembly method
|
IFR18500P-1.0AH |
4S1P |
|
Packing material |
PVC |
|
Capacity Test Method And Standard
|
Continuous the table 1
|
Features for LiFePO4 Battery Pack IFR26650 4S1P 12.8V 2300mAh For Solar Light
1. High energy density than normal lithium-ion
2. safest lithium raw material
3. Wide range of operating temperature from 0 degree to 45 degree
4. Stable operating voltage and current
5. Long operating time and deep circle 2000 times
6. Low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
Power bank
Laptop
Flashlight
E-V
Electrinic tool
E- shaver
Lamp
Solar Led Lighting

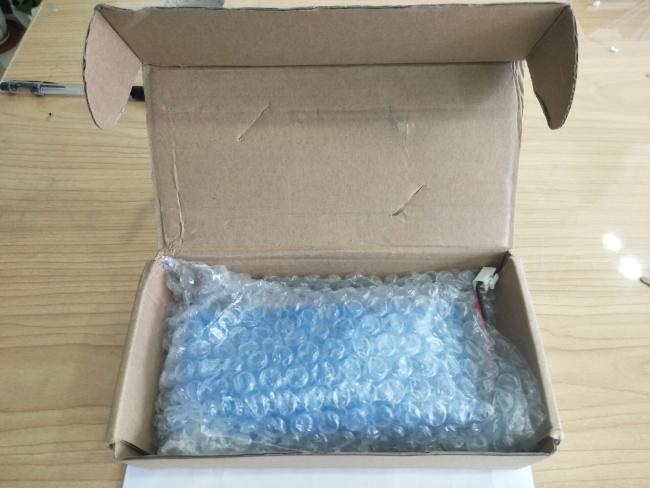

Package Pictures
- each battery pack protected by bubble pack,and then one pack for each box
- 20 box for one carton
- Display box and OEM package is workable
Accemble Structure:
Other Model For Similar Type
| MODEL |
CAPACITY mAh |
| IFR10120 | 35 |
| IFR10440 | 200 |
| IFR14430 | 300 |
| IFR14430 | 400 |
| IFR14430 | 500 |
| IFR14430 FLAT | 450 |
| IFR14505 | 250 |
| IFR14505 | 300 |
| IFR14505 | 400 |
| IFR14500 FLAT | 600 |
| IFR14505 | 600 |
| IFR15270 | 200 |
| IFR17335 | 450 |
| IFR18500 | 600 |
| IFR18500 | 800 |
| IFR18500 | 1000 |
| IFR18650 | 1000 |
|
IFR18650 HIGH POWER |
1100 |
| IFR18650 | 1200 |
| IFR18650 | 1500 |
| IFR26650 | 3000 |
| IFR26650 | 3300 |

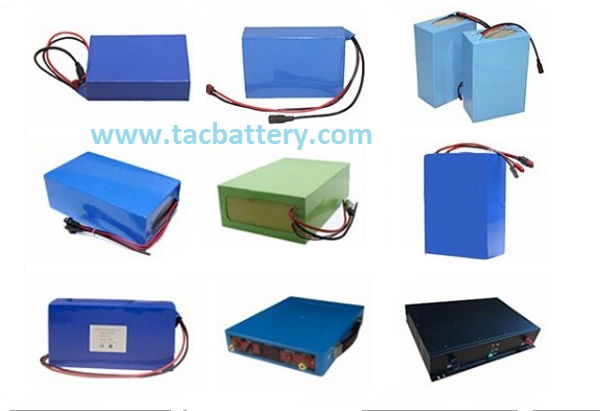

Similar Photos
