ICR18500 3.7V 1000mAh Lithium Ion Cylindrical Battery For Portable Flashlight
ICR18500 3.7V 1000mAh Lithium Ion Cylindrical Battery For Portable Flashlight
Description:
1.lithium-ion 3.7v rechargeable batteries
2.Battery performance meet IEC test standard to ensure capacity, quality and life time
3.Accurate size for 18500 Cylindrical Li-Ion Cell
4.With a long cycle life about 2000 times.
5.Other name such as ICR18500/INR18500/INM18500
6.Certification: UL,UN,ROHS
7.1 Year Warranty
8.Support small MOQ: 50pcs
Quick Detail:
|
Place of Origin: |
Guang dong China |
Brand Name: |
TAC |
|
Model Number: |
ICR18500 3.7V 1000mAh |
Rated Capacity: |
1000mAh |
|
Nominal Voltage: |
3.7V |
OEM & ODM: |
Support |
|
OEM & ODM: |
Support |
Packing: |
PVC Packing |
|
Warranty: |
12months |
Environmental Compliance: |
ROHS, REACH |
Li-Ion 18500 Cylindrical 3.7V 1000mAh Specification:
|
No. |
Items |
Specifications |
|
1 |
Product name |
Li-Ion 18500 Cylindrical 3.7V 1000mAh |
|
2 |
Nominal Capacity
|
1000mAh (0.2C Standard discharge 0.2C) |
|
3 |
Charge cut-off voltage |
4.2V |
|
4 |
Nominal Voltage |
3.7V |
|
5 |
Charge Voltage
|
4.2V±0.03V (By standard charge method)
|
|
6 |
Standard charging method |
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
|
7 |
Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
|
8 |
Storage temperature |
Temperature -20~25℃ Humidity 60%±25%RH |
Picture for ICR18500 3.7V 1000mAh Lithium Ion Cylindrical Battery For Portable Flashlight

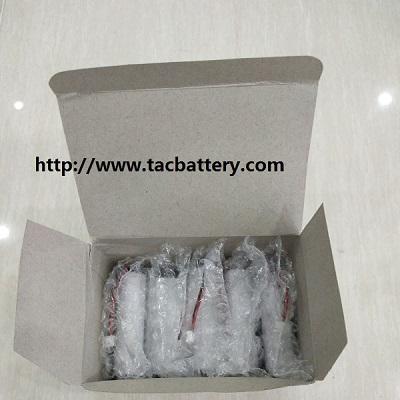

Package Photo
The Lithium-ion 18500 3.7v battery can be used for various electrical device
Energy Storage: UPS , backup ,power station
Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light
General Energy Storage (Such as: Back-up Power, Miner’s lamp, portable power supply, digital products etc.

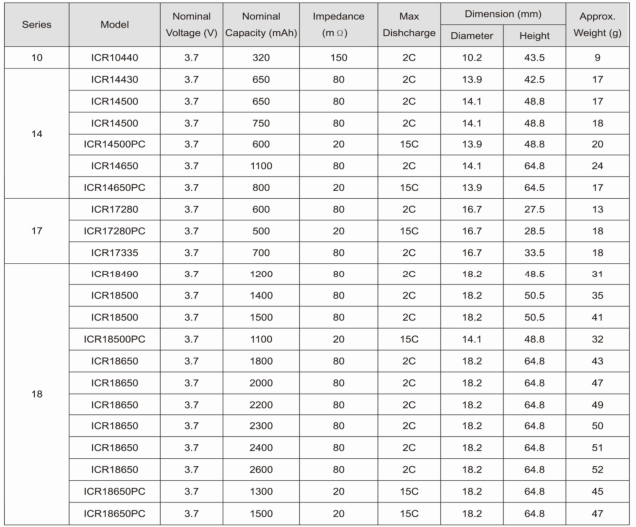

Lithium-ion Cell Product List
If you are seeking for 3.2V LiFePO4 18500 cell
