18650 Lithium Ion Cylindrical Battery Pack 3350mah 3.7V For Bike
18650 Battery Pack Manufacturers LIR 18650 3350mah 3.7V for Bike
Battery Parameters For 18650 Battery Pack Manufacturers LIR 18650 3350mah 3.7V for Bike
This model is similar with Samsung Lithium Battery INR 18650 29E
| No. | Item | Rated Performance | Remark | |
| 1 | Rated Capacity | Typical | 3350mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 3300mAh | |||
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage During Standard Discharge After Standard Charge | |
| 3 |
Voltage at end of Discharge |
3.0V | Discharge Cut-off Voltage | |
| 4 | Charging Voltage | 4.2±0.03V | ||
| 5 | AC (1KHz) Impedance New Cell Max.(mW) | ≤80mΩ | The measure must be uses the new batteries that within one week after shipment and cycles less than 5 times | |
| 6 | Standard charge |
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 4.0h | |
| 7 | Standard discharge |
Constant current 0.2 C5A end voltage 3.0V |
||
| 8 | Fast charge |
Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 2.5h | |
| 9 | Fast discharge |
Constant current 1 C5A end voltage 3.0V |
||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1.5 C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ |
60±25%R.H. Bare Cell |
|
| Discharge: -20~60℃ | ||||
| 13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. at the shipment state |
|
| less than 3 months: -20~40℃ | ||||
| 14 | Weight | Approx 39±3 g | Bare Cell | |
| 15 | Cell Dimension | Diameter:18.3±0.2mm | Initial Dimension | |
| Height:64.5±0.5mm | ||||
Application for 18650 Battery Pack Manufacturers LIR 18650 3350mah 3.7V for Bike
- Electronic instruments
- E- toy
- electrical scooter
- various light lamp
- note book
- Power tool
- solar product
- camera
- for Led light
- electrocardiogram machine (ECG machine)
FAQ for 18650 Battery Pack Manufacturers LIR 18650 3350mah 3.7V for Bike
Q: Can I get the sample order?
A:Yes, if the buyer would like to pay for the samples fee and shipping fee ,we welcome sample order to test and check quality, Mix sample are acceptable
Q:How did you ship the goods and how long does it take arrive?
A:the lithium battery is dangerous cargo , We usually ship by our forward including of DHL, EMS, Fedex, and TNT, It usually take 3-5 work days to arrive.
Q:How to proceed the order if I have logo to print?
A:Firstly, pls confirm the specification for the battery including of the size accemble and other important performance , and the we will issue the PI, after the buyer pay with the PI , we will send sample to you.
Q:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the products.
There are multiple capacity for 18650 lithium-ion Battery :
Pictures For 18650 Battery Pack Manufacturers LIR 18650 3350mah 3.7V for Bike
LIR18650 3.7v Lithium Ion Cylindrical Battery 2200mAh with High Energy Density for LED Light
Industry Packaging Description
The industry packaging is 50 pcs in one box , and 8 box in one carton
We also support the display or OEM package
Delivery Date:
7-10days after the customer confirmt he Pi and arrange the payment
We ship out the cargos by air and sea with customer's require
Sure we can product the battery pack by this cell with customer's require.

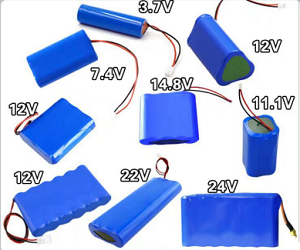

The Picture for battery pack
Our Factory Picture
