3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen
Li-polymer Battery 401225 Rechargeable Li ion Polymer Battery for Recording Pen
The Polymer Lithium Ion Battery (LP) features the following:
- Most of cell Passed UL, CE tests to ensure products are safe for public use.
- Lighter weight, higher capacity, higher operation voltage, low self-discharge rate,than normal lithium battery
- Excellent abuse tolerance and environmentally friendly passed Reach and Rohs
- Suitable for a wide variety of applications and system designs.
- Offers an excellent combination of price-performance.
Application:
UAM ,Mobile phone, notebook PC, Bluetooth, PDA, MP3/MP4, smart card, portable DVD player, camcorder, UPS, Power tools,LEV, HEV and EV etc.
Specificaiton for
Li-polymer Battery 401225 Rechargeable Li ion Polymer Battery for Recording Pen
|
No. |
Item |
Rated Performance |
Remark |
|
|
1 |
Rated Capacity |
Minimum |
90mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage During Standard Discharge After Standard Charge |
|
|
3 |
Voltage at end of Discharge |
3.0V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
|
5 |
AC (1KHz) Impedance New Cell Max.(mW) |
≤120mΩ |
|
|
|
6 |
Standard charge |
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 4.0h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5A end voltage 3.0 V |
|
|
|
8 |
Fast charge |
Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
|
9 |
Fast discharge |
Constant current 1 C5A end voltage 3.0 V |
|
|
|
10 |
Maximum Continuous Charge Current |
1 C5A |
|
|
|
11 |
Maximum Continuous Discharge Current |
1.5 C5A |
|
|
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. Be Cell |
|
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. at the shipment state |
|
|
less than 3 months: -20~40℃ |
||||
|
14 |
Weight |
Approx :10g |
Bare Cell |
|
|
15 |
Cell Dimension |
Length: Max.25.5mm |
Initial Dimension |
|
|
Width: Max.12.5mm |
||||
|
Thickness: Max. 4.2mm |
||||

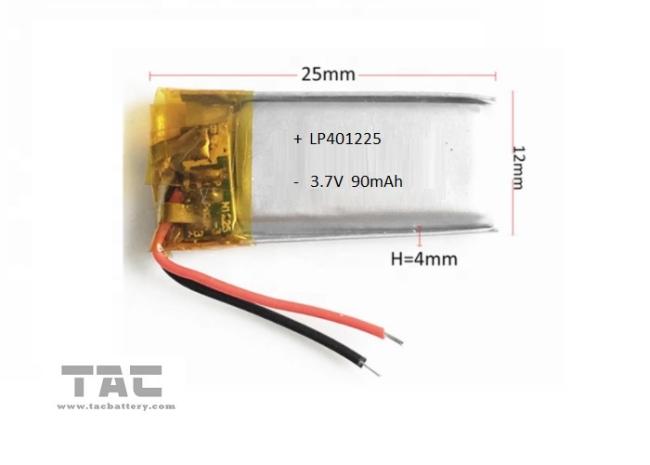

Package Picture
Production Photo

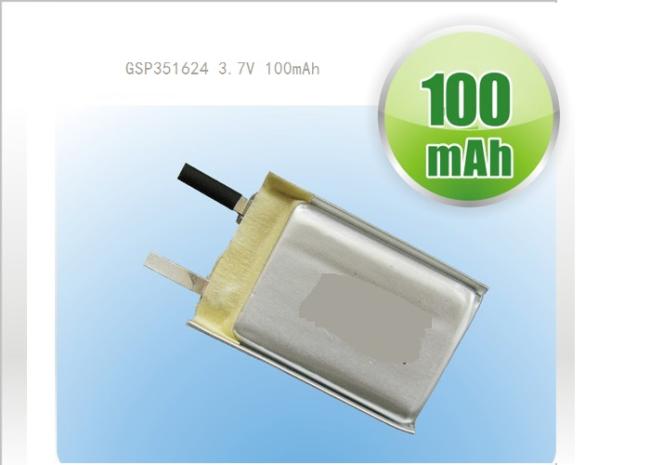

similar size and capacity
Period of Warranty
The period of warranty is six months from the date of shipment. Great Power guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per year to prevent over discharge.
Tag: Polymer Lithium Ion Battery for PDA, MP3, MP4, smart card
