Samsung Lithium-ion Rechargeable Cell INR21700-50E For ESS Electronic Tool

Specification for Samsung Lithium-ion Rechargeable Cell INR21700-50E For ESS Electronic Tool

Product advantages: Imported with original packaging, fair price, stable supply, providing lithium battery related technical services
Application areas: medical equipment, energy storage equipment, electric vehicles, power tools, model aircraft

Detail Performance:

Model: INR21700-50E
Nominal Capacity: 5000mAh
Minimum Capacity: 4900mAh
- Charge : 0.5C(2450mA), 4.2V, 0.02C(98mA) cutoff @ RT
- Discharge : 0.2C(980mA), 2.5V cutoff @ RT
* 1C=4900mA
Nominal Voltage: 3.6V
Charging Method: CC-CV
Charging Voltage: 4.2V
Standard Charging Constant Current: 2450mA
Standard Charging Time: 3hours
Standard Charging End Current: 98mA
Maximum Charging Current: 4900mA(not for cycle life)
Discharging Cut-off Voltage: 2.5V
Maximum Discharge Current
- For Continuous Discharge: 9800mA
- Not For Continuous Discharge: 14700mA
Cycle Life: Capacity ≥ 3,802mAh @ after 500cycles(80% of the Rated Discharge Capacity @ RT)
- Charge:0.5C(2,450mA),4.2V,CCCV0.05C(245mA) cut-off @ RT
- Discharge: 1C(4,900mA), 2.5V cut-off @ RT
Weight: Max. 69g
Maximum Dimensions: D-20.25mm, L-70.80mm
Storage Temperature: -20 to +60° C

The Drawing for Samsung Lithium-ion Rechargeable Cell INR21700-50E For ESS Electronic Tool

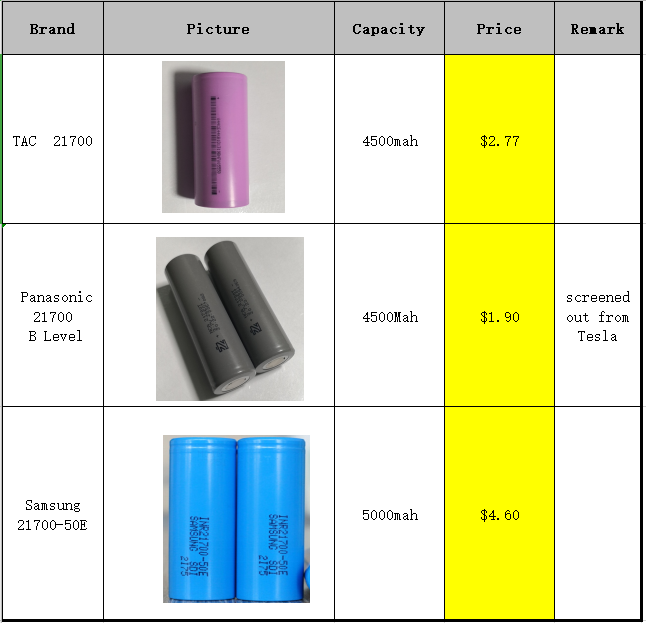

TAC Support more brand for 21700
