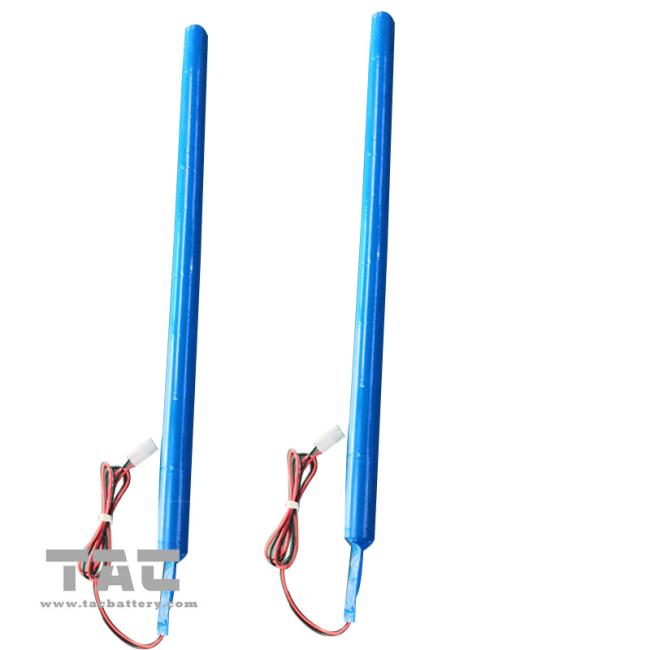

IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH
IOT 11.1V Lithium ion Cylindrical battery ICR26650 15AH
Battery Pack Specifications
| No. | Items | Specifications |
Remark
|
|
1 |
Capacity for assembled cell discharging by 0.2C
|
≥14400mAh |
Standard discharging method
|
|
2 |
Battery Voltage
|
11.1V~11.7V
|
Delivery voltage, Within 10 days from Factory
|
|
3 |
Standard charge condition
|
Charge with 0.2C constant current and 12.6Vconstant voltage, charge to 12.6V,continue charging till current declineto ≤0.01C
|
Charge voltage:12.6V±0.02V Charge current:0.2C
|
| 4 |
Overcharging protection voltage
|
12.39V-12.825V |
|
|
5 |
Maximum charge current
|
4A
|
For continuous charging mod
|
|
6 |
Maximum discharge current
|
4A
|
For continuous discharge mod
|
|
7 |
Standard discharging method
|
0.2C constant current discharge to 9.0V, |
0.2C |
|
8 |
Internal Impedance
|
Assemblage Impedance
|
Measure two sides of the drawing line after assembling.
|
| NO. | Items | Units:mm | |
| 1 | Length/without PCB | L1 | Max602mm |
| 2 | Length//withPCB | L2 | Max662mm |
| 3 | Diameter/ | W | Max30mm |
| 4 | Wire/ | L3 |
750±3mm |
BOM of Battery Pack
| NO. | Part name | Quantity | Unit/ | Remark | HSF |
| 1 | Cell/ | 9 | ea | ICR26650 5AH | ROHS |
| 2 | Connector/ | 1 | PCS |
ROHS
|
|
| 3 | Solder/ | 0.2 | g | Lead Free | ROHS |
| 4 | Wire/ | 2 | PCS | 18AWG | ROHS |
| 5 | PCM/ | 1 | PCS | SH0405B034X2-LX3S4A |
ROHS
|
Warranty
The period of warranty is One year from the date of shipment. TAC guarantees to give a replacement in case of cells with
defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.

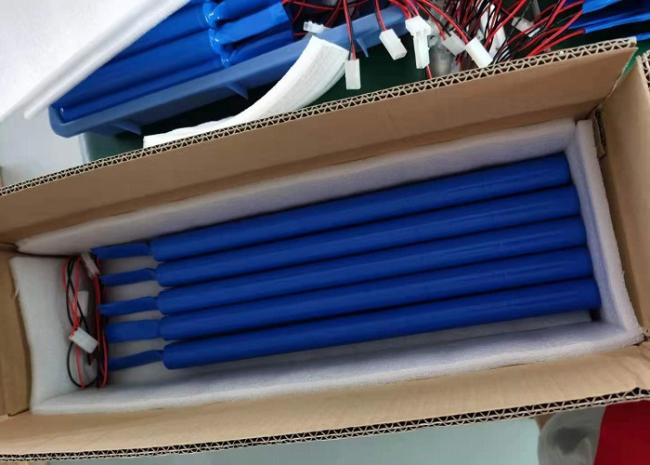

Packing Detail
5 battery packs for one cargon , the battery pack was protect by strong foam one by one
