High energy density Solar Led Flashlight Lithium Ion AA Batteries 3.7V / 7.4V / 14.8V
High energy density Solar Led Flashlight Lithium Ion AA Batteries 3.7V / 7.4V / 14.8V
Key Data for High energy density Solar Led Flashlight Lithium Ion AA Batteries 3.7V / 7.4V / 14.8V
|
Type |
14500 Rechargeable Protected Battery 3.7V 800mAh |
|
Cell |
14500FM 800mAh |
|
Nominal voltage |
3.7V |
|
Nominal capacity |
800mAh |
|
|
discharge at 0.2C mA |
|
Minimal capacity |
800mAh |
|
Stanard Charge voltage |
4.20V ( Full Charged Voltage ) |
|
Standard Charge current |
800mA |
|
Charge Time(Std.) |
3 hours |
|
Discharge cut-off voltage |
3.0V |
|
Standard Discharge current |
400mA |
|
Standard Discharge cut-off current |
400mA |
|
PCB protection trip current |
about 10A |
|
Operating environment |
Charging, 0°C ~ 45°C ; 65±20%RH |
|
Discharging, -20°C~60°C ; 65±20%RH |
|
|
Storage environment |
-20°C~60°C; Less than 1 month |
|
-20°C~60°C; Less than 3 months |
|
|
Cell Weight ) |
Max 48g |
|
Cell Dimension |
(L)50.0mm*(D)14.50mm |
Features
- High Capacity and Stable Discharge Voltage for same size
-
Use A Level 100% truth capacity cells, high performance
-
battery with or without pcb meet customer's design
-
With transparent heat shrink wrap to avoid short circle
-
Light weight, small size and high performance
-
Small internal resistance
-
High energy density, low self-discharge
-
Pollution free passed Reach , long cycle life over 500 times
-
No memory effect
-
Factory price, quality guaranteed with ISO4001

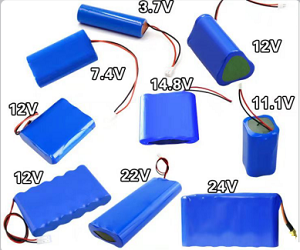

Battery Pictures

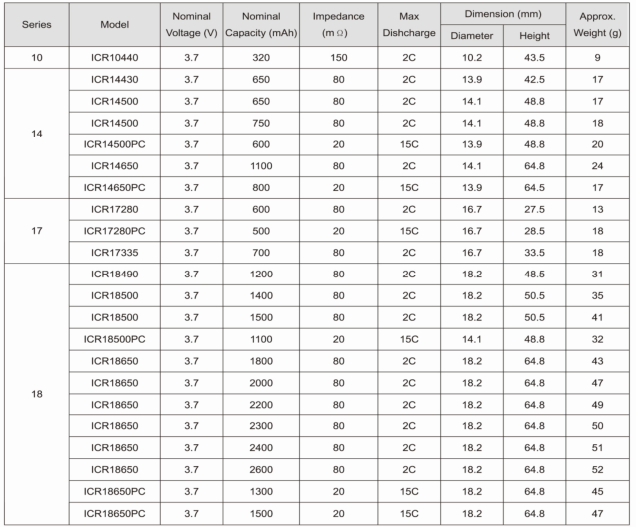

Single Cell Production List
