Lifepo Battery Lithium Ion Phosphate 3.2v LiFePO4 Battery 1100 / 1300 / 1500mAh
Lifepo Battery Lithium Ion Phosphate 3.2v LiFePO4 Battery 1100 / 1300 / 1500mAh
Specification for Lifepo Battery Lithium Ion Phosphate 3.2v LiFePO4 Battery 1100 / 1300 / 1500mAh
|
Item |
Rated Performance |
Remark |
|
Nominal Voltage |
3.2V |
Mean Operation Voltage During Standard |
|
Voltage at end of |
2.0V |
Discharge Cut-off Voltage |
|
Discharge |
|
|
|
Charging Voltage |
3.8±0.1V |
|
|
Max Charging Voltage |
4.0V |
|
|
AC (1KHz) Impedance New Cell Max.(mW) |
≤100mΩ |
|
|
Standard charge |
Constant Current 0.2C |
Charge time : Approx 8.0h |
|
|
Constant Voltage 3.8V |
|
|
|
0.01 C5A cut-off |
|
|
Standard discharge |
Constant current 220mA |
|
|
|
end voltage2.0V |
|
|
Self-discharge |
≤10% |
After Standard Charge, at 23 °C ±2 °C, stores 30 day to measure it’s capacity |
|
Operation Temperature Range |
Charge: 0~45°C |
60±25%R.H. |
|
|
Discharge: -20~60°C |
Bare Cell |
|
Storage Temperature |
Less than 1 year: -20~25°C |
60±25%R.H. |
|
Range |
less than 3 months: -20~40°C |
at the shipment state |
|
Cell Dimension |
18.0(±0.2)*64.5(±0.3)mm |
Initial Dimension |

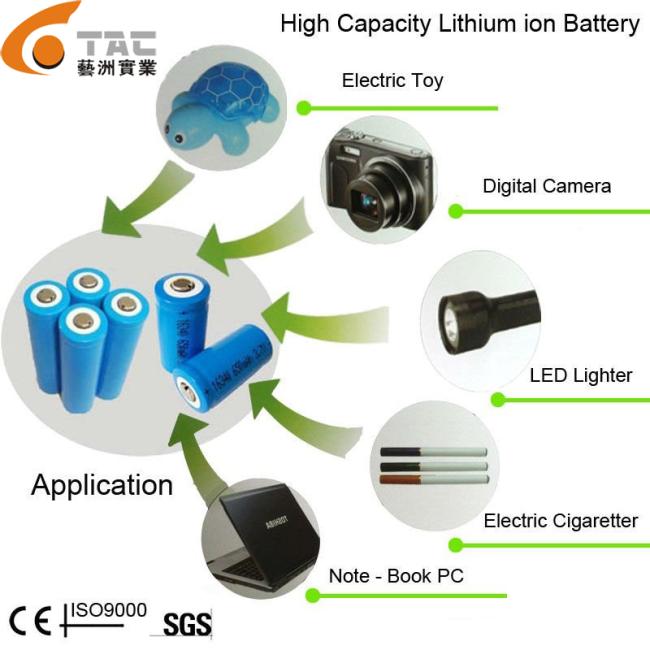

Application for Lifepo Battery Lithium Ion Phosphate 3.2v LiFePO4 Battery 1100 / 1300 / 1500mAh
Electric toy
digital camera
Led lighting
street lamp
Key Features:
1. Model:IFR18650 1500MAH 3.2V high power 5C discharge Battery cell
2. REACH BASIC approved lifepo4 cell
3. Li-ion Battery Pack OEM ODM orders are ok for us
4. Li-ion Battery Pack Customizes including of shapes, capacity, and voltage are accepted
5. Bulk cell, blister card are available
Our Advantages:
- Experienced Staff : over 8 years battery product
- Reasonable price : quotation the good price with your require
- Product Performance 100% same as the specification
- Quality Approvals ; we would like to replace the new battery within 1 year , if you found reject battery
- Small Orders Accepted : MOQ 500pcs
- Provide OEM/ODM service

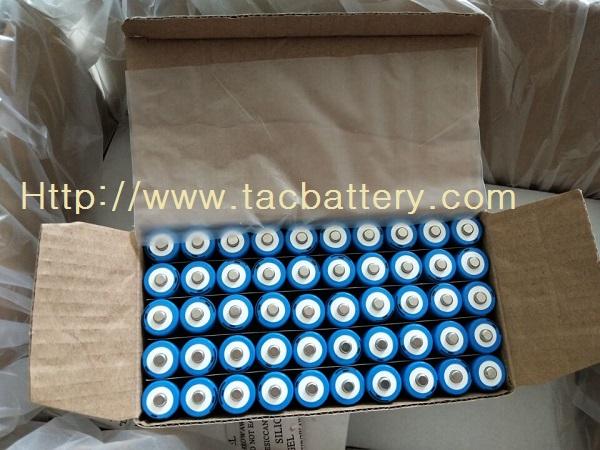

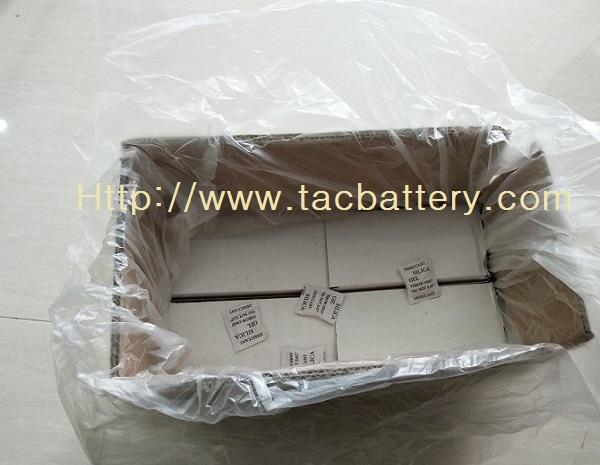

Packing and Delivery
50pcs in one inner box . 4 box in one strong export carton
Similar Model for Lifepo4 Battery Cell
| model | capacity | voltage | remark |
| IFR10440 | 200MAH | 3.2V | |
| IFR14500 | 600MAH | 3.2V | 500MAH 600MAH |
| IFR15270 | 200MAH | 3.2V | |
| IFR17335 | 450MAH | 3.2V | |
| IFR26650 | 3300MAH | 3.2V | 3000MAH-3300MAH |
Lifepo4 Battery Cell

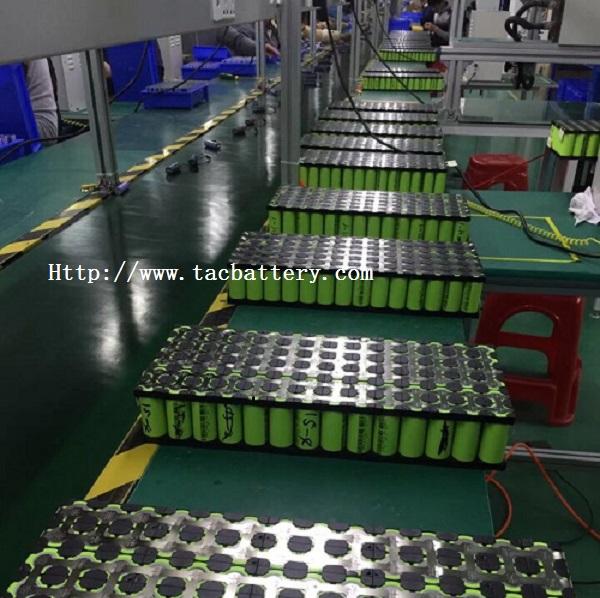

Production Line for Lifepo4 Battery

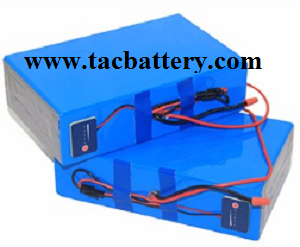

Battery Pack Assembled by 3.2V LiFePO4 Battery ![]()
