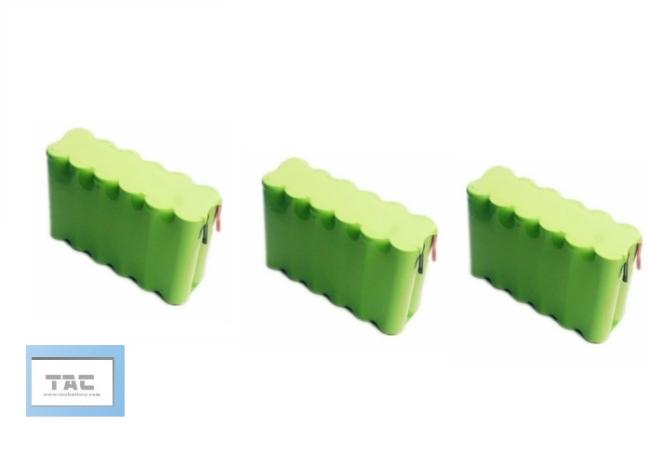

Power Tools Ni-Mh Battery Pack 12v 4.8v 14.4v 18v 24v 2200mAh SC Size
Power Tools Ni-Mh Battery Pack 12v 4.8v 14.4v 18v 24v 2200mAh SC Size
Specification For Battery Pack
| Desription | Specification | ||
| Pack model | 10PH-SC3500-W-T | ||
| Cell size | SC | ||
| Dimensions | Length(mm) | 90.0±1.0 | |
| Width(mm) | 61.0±1.0 | ||
| Height(mm) | 43.5±0.5 | ||
| Weight(g) | Approx.620g | ||
| Nominal Voltage(V) | 12.0 | ||
| Nominal capacity(mAh) | 3000 | ||
| Internal Impedance(mΩ) | ≤300 | ||
| Discharge Cut-off Voltage | 10V | ||
| Ambient temperature | Charge | standard | 0℃ to 40℃ |
| fast | 10℃ to 40℃ | ||
| Discharge | -10℃ to 50℃ | ||
| Storage | ＜1 year | -10℃ to 30℃ | |
| ＜3 months | -10℃ to 40℃ | ||
| The relative humidity should keep with in 65±20% | |||
Characteristic For Power Tools Ni-Mh Battery Pack 12v 4.8v 14.4v 18v 24v 2200mAh SC Size
1. CE UL certification passed
the battery pass the CE UL certification it is an environmental friendly chemical power source.
2. 2200-4000mah High capacity
The capacity is double than that of Ni- Cd battery in same size,
3. 500 times Long cycle life.
More than 500 charge/discharge cycles under normal use.
4. the battery can be Rapid charge
HFR battery has good performance of rapid charge within 15 minutes-1 hours .
Discharge rate can be designed by your specified.
5. Safety and Reliability
Battery’s product safety system is quite perfect.
6. Wide temperature range.
wide temperature range 0℃--40℃；Specially designed battery used in high or low temperature.
Similar Model for Battery Pack
| Type | Model | Size |
Nominal capacity(mAh) |
Dimensions |
The max discharge current(A) |
Raoid Charge | Weight | ||
| Height | Diameter | Current | Time | ||||||
| SC | 1500 | SC | 1500 | 33 | 23 | 22.5 | 1500 | 1.2 | 35 |
| SC | 1600 | SC | 1600 | 33 | 23 | 24 | 1600 | 1.2 | 36 |
| SC | 1800 | SC | 1800 | 33 | 23 | 27 | 1800 | 1.2 | 38 |
| SC | 2000 | SC | 2000 | 33 | 23 | 30 | 2000 | 1.2 | 40 |
| SC | 2100 | SC | 2100 | 33 | 23 | 31.5 | 2100 | 1.2 | 41 |
| SC | 1300 | SC | 1300 | 43 | 23 | 19.5 | 1300 | 1.2 | 40 |
| SC | 1600 | SC | 1600 | 43 | 23 | 24 | 1600 | 1.2 | 44 |
| SC | 1800 | SC | 1800 | 43 | 23 | 27 | 1800 | 1.2 | 46 |
| SC | 2000 | SC | 2000 | 43 | 23 | 30 | 2000 | 1.2 | 48 |
| SC | 2200 | SC | 2200 | 43 | 23 | 33 | 2200 | 1.2 | 50 |
| SC | 3200 | SC | 3200 | 43 | 23 | 48 | 3200 | 1.2 | 60 |
| SC | 3300 | SC | 3300 | 43 | 23 | 49.5 | 3300 | 1.2 | 61 |
| SC | 3600 | SC | 3600 | 43 | 23 | 54 | 3600 | 1.2 | 65 |
Drawing for Battery Pack
