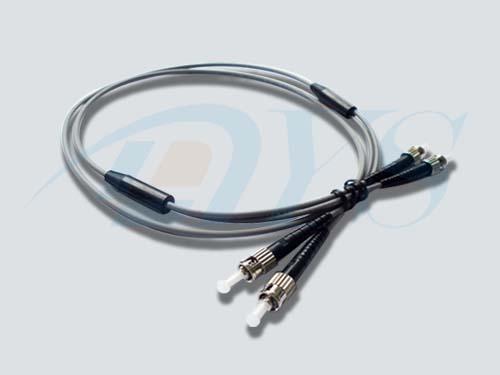

High Tensile Resistant Optical Fiber Patch Cord 2.9mm 1 / 2 Cores with Flexible Metal Tube
High Tensile Resistant Optical Fiber Patch Cord 2.9mm 1 / 2 Cores with Flexible Metal Tube
Quick Details
Brand Name: DYS
Model Number: Environmental IP67
Mode: Singlemode
Insertion Loss≤0.3 dB
Operating temperature:-40℃～+75℃
Storage temperature:-40℃～+80℃
Compression resistant strength:≥150KGf/100MM
Applications
1.Fiber to the home(FTTH)
2·Building unprotected cabling
3·WiMax base station remote radios
4·Suited for Industrial and Aerospace and Defense applications.
5·Based on the N type RF Coax connector
Features
1·Flexible metal tube protect the fiber optic
2·High compression resistant, high tensile resistant, rat –bite resistant
3·Bend resistant and optimum flexible
4·Easy wiring, secured and reliable
Specifications
|
Item |
Vaule |
|
|
Outer diameter |
2.9mm(1core, 2core), 4.0mm(4core), 4.5mm(6core), 6mm(12core) |
|
|
Standard color |
Blue(Singlemode), Gray(Multimode) |
|
|
Operating temperature |
-40℃～+75℃ |
|
|
Storage temperature |
-40℃～+80℃ |
|
|
Compression resistant strength |
≥150KGf/100MM |
|
|
Tensile strength |
Short term |
150N |
|
Long term |
80N |
|
|
Bending radius |
Dynamic |
45mm |
|
Static |
30mm |
|
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure productquality stability andexcellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
