Automatic 50hz 380v Steel Cable Tray Roll Forming Machine Plc Control

Brief introduction of cable tray roll forming machine

Cable tray roll forming machine is used for producing cable tray with different sizes, it uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes’stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height.

Components of cable tray roll forming machine

Automatic inner tight decoiler, a roll former. punching device, hydraulic cutting, PLC control system, hydraulic system, an run-out table

Technical parameters of cable tray roll forming machine

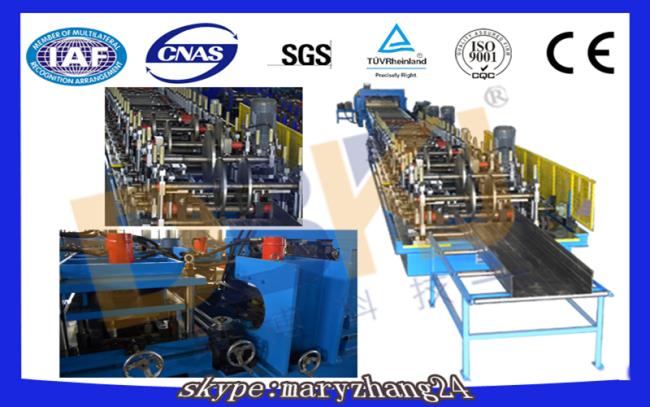

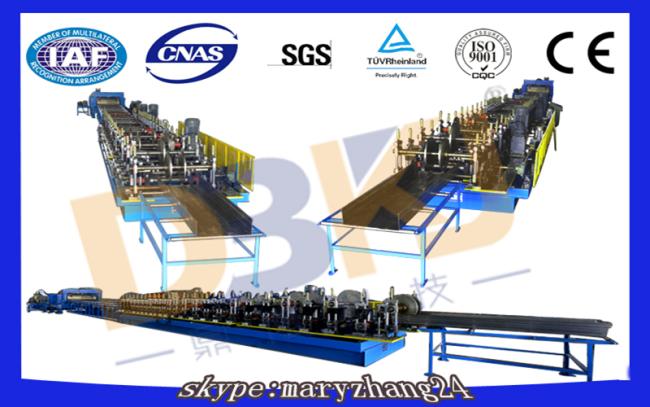

Pictures for reference

After sale services

• Engineer will give free training lessons to labors in buyer’s factory.
• The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
• During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
• We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
