Plc Controlled Gutter Roll Forming Machine , Wall Panel Roll Forming Machine
Price:
USD 12500-16500/set
MOQ:
1 set
Delivery Time:
35 working says after receiving the deposit
Brand:
Dingbo
Product Description
Plc Controlled Gutter Roll Forming Machine , Wall Panel Roll Forming Machine
Features of gutter forming machine
1. Passing CE, Guaranteed quality,
2. Adopt PLC control system, Easy to handle
3. Designing according to your requirement
Rain Gutter Cold Roll Forming Machine is composed of the decoiler, feed-leading table, main machine, the post cutting device, hydraulic system, PLC controler and the supporting table.
Technical parameters of gutter forming machine
| No. | Name | Description |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 400mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 10 rows |
| 6 | Diameter of the roller | 70mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 3kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 2.8T |
| 18 | Dimensions | 5.6*1.0*1.5m |

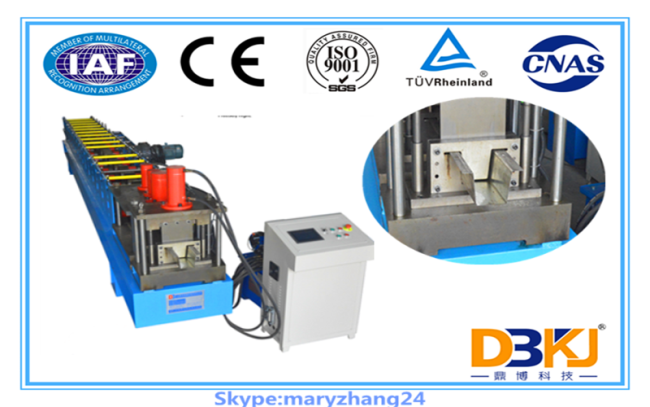

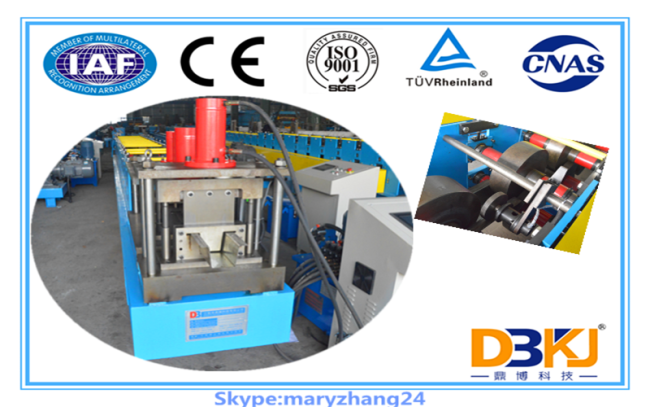

Pictures for reference
Exhibitons
After sale services
- Engineer will give free training lessons to labors in buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 for engineer.
- During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
- We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
