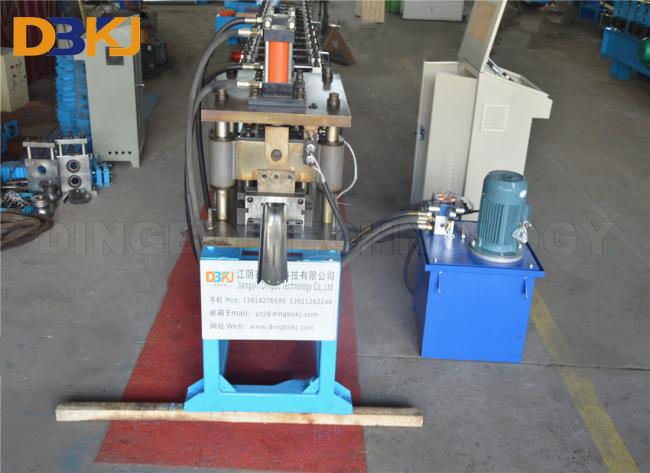

Hydraulic Electrical Rolling Shutter Door Roll Forming Machine With PLC Control System

Main features

The roller shutter door roll forming machine with high efficiency, low energy consumption, and reduce environmental pollution, the steel structure also has a considerable breakthrough, bring more benefits to the market, with galvanized steel or different color steel or aluminum plate as raw material pressure equipment production line rolling shutter door, product color plate production volume gate brilliant color, do not fade, do not rust, widely used in store, workshop, warehouse, fire partition, strength is higher than the aluminum alloy door.

Working flow
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

Technical parameters

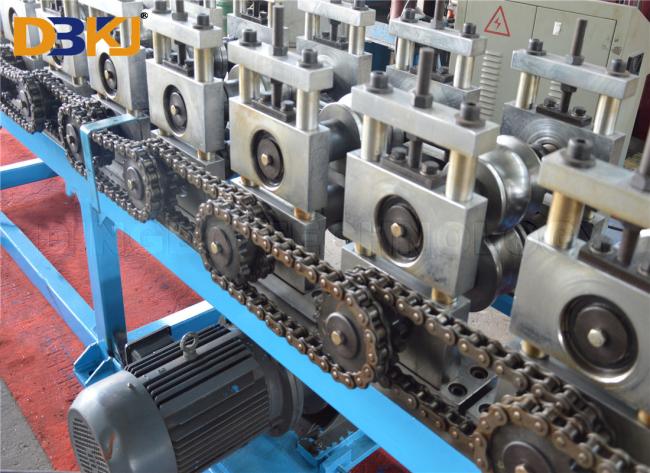

Machine component

Decoiler

3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg

Leveling device
1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm

Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 3KW

Hydraulic cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm

Control box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)

Output table

Length : 2m
Quantity: 2 units
