Product Description
C / Z Purlin Roll Forming Machine , Cold Roll Forming Equipment High Efficient
Main feature
The steel purline is formed by cold bending thin-walled steel in the indoor temperature, and the material will produce the cold bending effect.
It is suitable for steel structure engineering roof and wall beam etc.
Technical parameters
- Type: Steel Frame & Purlin Machine
- Condition: New
- Work Pressure: 245---550Mpa
- Production Capacity: 15-20m/min
- Place of Origin: Jiangsu, China (Mainland)
- Model Number: DBCZ01
- Voltage: 380V/415V/440V
- Power(W): 18.5KW+7.5KW
- Dimension(L*W*H): About 11.2M*2.5M*1.8M
- Weight: about 10.5 tons
- Certification: ISO9001
Main components
| No. | Name | Qty |
| 1 | Manual uncoiler | 1 |
| 2 | Servo feeding | 1 |
| 3 | Hydraulic punching | 1 |
| 4 | Main roll forming machine | 1 |
| 5 | PLC Control box | 1 |
| 6 | Hydraulic station | 1 |
| 7 | Output table | 2 |

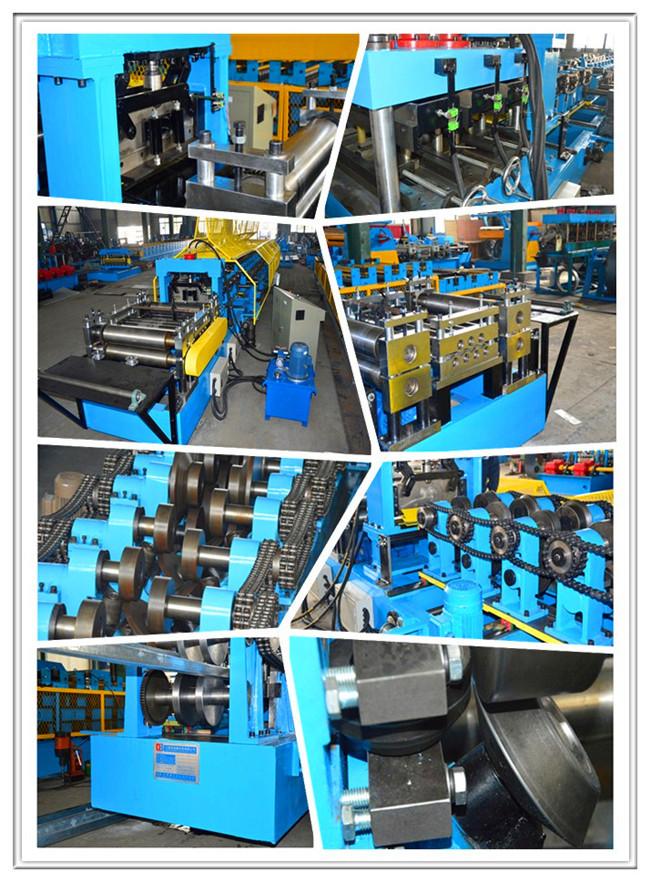

Machine picture

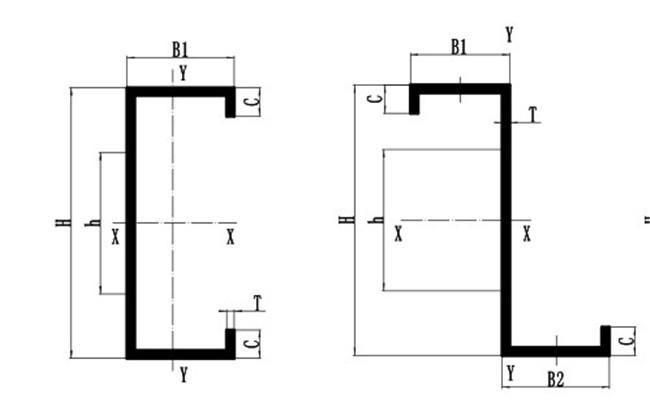

Profile drawing
Commercial items
- Delivery time: Approx. 60 working days after technical clearance and down payment;
- Validity time: The period of validity for this quotation is one month.
