5.5kw Steel Glazed Tile Forming Machine with 10 - 15 m / min Forming Speed for Steel Panel Roofs and Walls

Product Descriptions

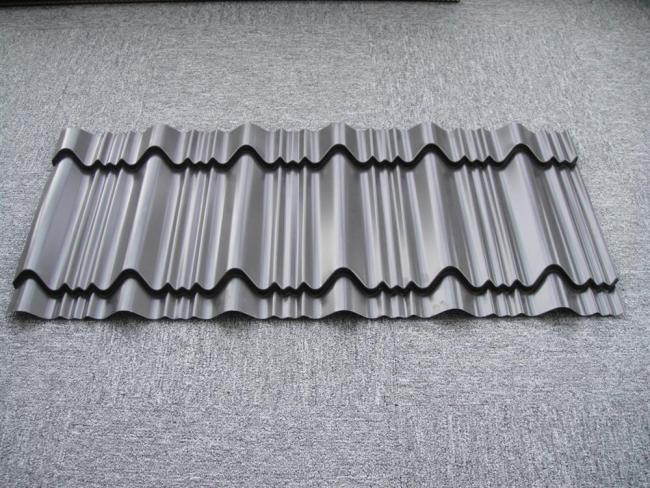

Our roof panel forming machine produces different kinds of steel panel tiles for roofs and walls. Tile is for temporary building site, steel structure workshop, and public building and feature fast construction speed. Our tile is durable, has an attractive appearance. This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.

Rolling color steel to different wave shape. It is suitable for industry and civilian building, warehouse, special building, big span steel structure etc. Light weight, high strength, rich color, convenient construction, quake-proof, rain-proof, long life, no maintenance etc.

This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.

Version to design

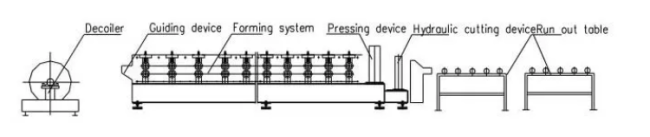

Working Flow

Decoiler — Guiding device — Forming system — Hydraulic Cutting— Run out table

Product Parameters

• Width of feeding material: 1000/1250 mm coil sheet
• Thickness of feeding material: 0.3-0.8 mm coil sheet
• Roller station: 7-15 stations
• Shaft Diameter: 65-95 mm
• Rollers' material: 45# steel forge
• Shaft material: 45# steel
• Weight: 5-8 ton
• Length: 5.5-11 m
• Voltage: 380V 50Hz 3phases
• Control: PLC
• Decoiler: 5 Tons
• Motor: 7.5 kw
• Driving way: Chain transmission
• Chain size: 0.6-2 inch
• Cutting system: Hydraulic cutter

Main Components

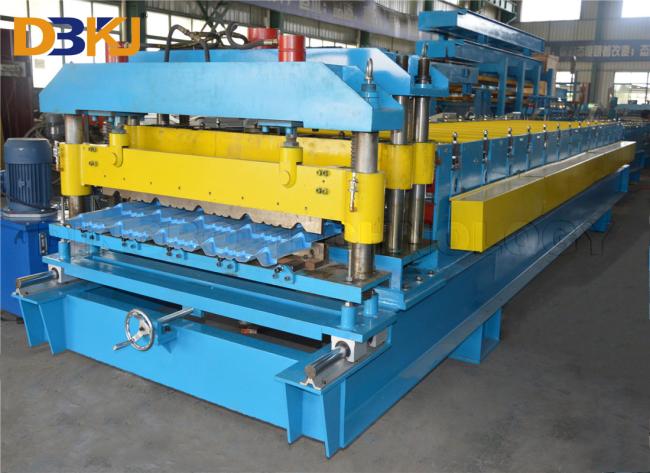

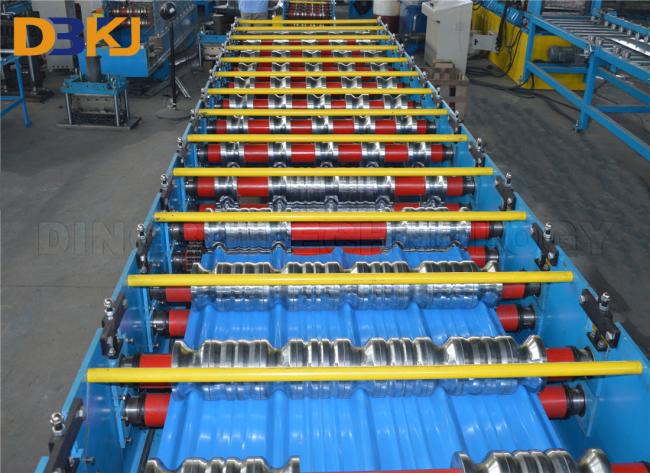

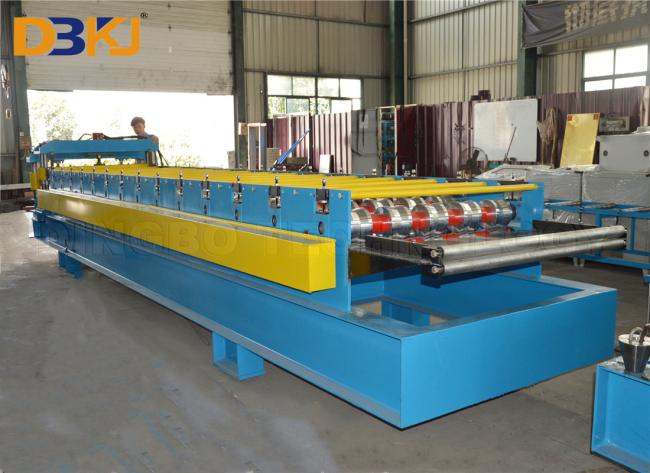

Pictures
