5.5kw Glazed Steel Tile Forming Machine for Steel Structure Workshop
5.5kw Glazed Tile Steel Sheet Forming Machine for Steel Structure Workshop
Product Descriptions

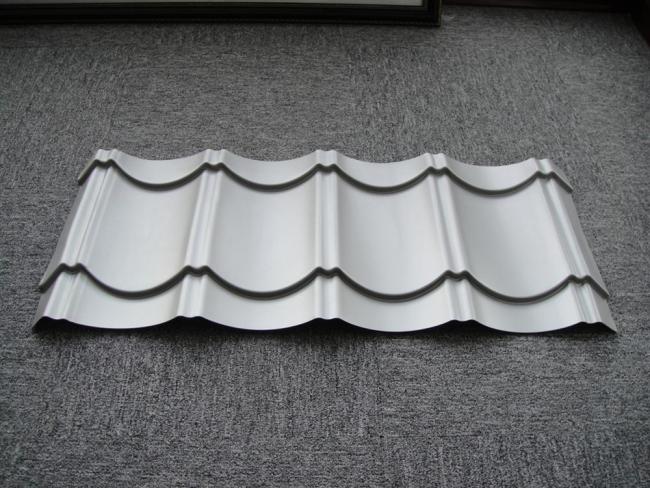

The products produced by Trapezoidal Roof Roll Forming Machine are used in various industrial plants, warehouses and other roofing productions with the advantages of high peak height and high strength. The lap joint installation is safe and reliable, and the waterproof and anti-riot violent performance is strong. The pressure plate produced by the machine solves the conventional series. Leakage of the roof panel of the profiled panel.
Version to design

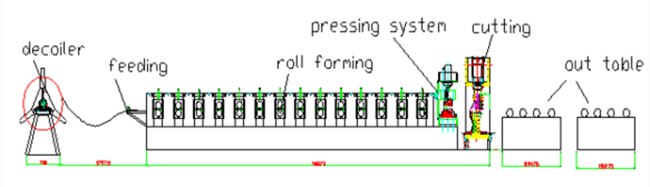

Working Flow
Decoiler -- Guiding device --Forming system -- Cutting device-- Output table
Product Parameters
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils |
| 2 | Width of the feeding material | 914-1250mm |
| 3 | Roller station | 11-18 rows or custom as customer's requirements |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 10-15 m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Diameter of shaft | 70-80mm |
| 8 | Voltage | 380V 50Hz 3Phases |
| 9 | Main forming machine body | 300-400 mm H steel |
| 10 | Motor power | 4-7.5 kw |
| 11 | Weight | About 5-15T |
| 12 | Custom | According to customer's requirements |
Main Components
| No. | Name | Qty |
| 1 | Decoiler | 1 |
| 2 | Main roll forming machine | 1 |
| 3 | PLC Control box | 1 |
| 4 | Hydraulic station | 1 |
| 5 | Output table | 2 |
Pictures
