Hydraulic Curving Roof Panel Roll Forming Machine for Round Roofs of Buildings
Price:
USD5,000-USD10,000
MOQ:
1
Delivery Time:
25days
Brand:
DB
Product Description

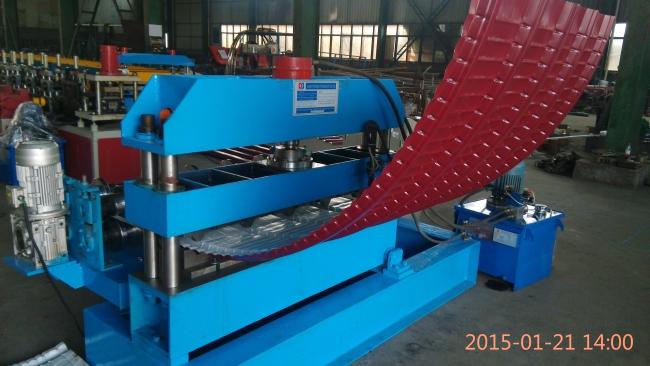

Hydraulic Curving Roll Forming Machinery for Round Roofs of Buildings
Introduction:
Hydraulic Arch crimping machine is and bending machine for roof panel and used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Arch crimping machine Crimping main machine and Control panel, this crimping machine can crimp both ends of roofing sheet.
Main specification:
| Formed Profile Type | Arch Roof panel |
| Raw material thickness | 0.3-1.0 mm |
| Corrugated Punching moulds | CR12, HRC55-60 |
| Line speed | 0-10m/min |
| Feeding mode | Servo motor, 1kw |
| Main power | 0.85KW |
| Hydraulic station power | 5.5KW |
| Electrical control system | PLC |
| Max. bending angle | 120 |
| Machine size | 3000 mm×1400mm×1400 mm |
Our advantage:
1.Competitive price.
2.Reliable and stable.
3.SGS and CE certification
4.OEM of many companies
5.Fast delivery

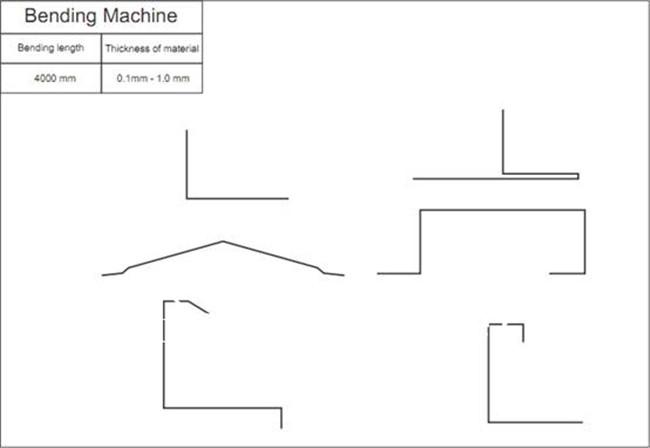

The profile darwing:
