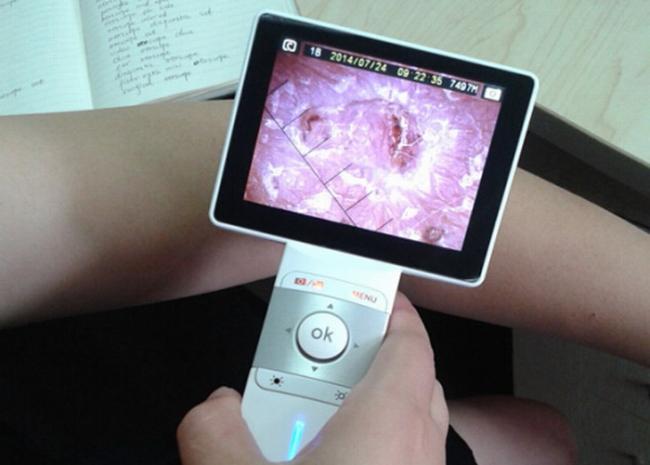

Handheld Skin And Hair Analysis Video Dermatoscope With 3.5 Inch Colorful LCD
Handheld Skin And Hair Analysis Video Dermatoscope With 3.5 Inch Colorful LCD
BS4 is one set of the full digital inspection scopes, mainly used for clinical inspection of human body.
All the images and video chips can be stored in the SD card and output to PC or laptop for saving as patients profile.
It's very convenient to compare the images and situations before and after therapy.
Video Otoscope Feature

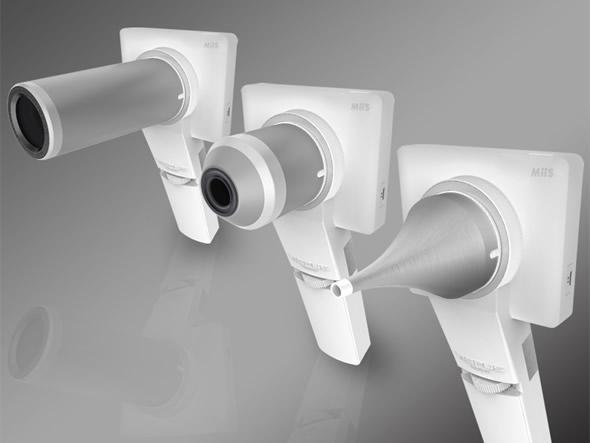

1. Specially designed for the department of ENT. It can be used to examine eardrum, nasal cavity and throat with different camera probe.
2. Avoid high cost of the traditional ENT examination equipment, such as light source, CCD, Monitor etc.
3. Light weight and portable, suitable for outpatient department, emergency room and medical ward.
4. High resolution image. The SD card can store multiple freeze images and videos, and can be connect to computer to print patient reports.
5. 3.5 inch high definition LCD screen, watching and taking photos at the same time.
6. it can be connected to large size monitor, synchronized to the big screen.
Specifications
|
Resolution |
1920 x 1080 |
|
Light source |
Natural white(LED) |
|
LCD screen |
3.5 inch colorful TFT-LCD |
|
Image format |
JPEG(phote), H.264(video)dicom(optional) |
|
Interface |
Mini USB port,headset port |
|
Media |
Micro SD flash card,maximum support 32GB |
|
Power supply |
3.7V / 2600mAh rechargeable lithium battery |
|
External power |
100~240 VAC,50/60 Hz |
|
Working time |
2.5 W for 3 hours |
|
Charging time |
5 hours |
|
Package |
Length:305mm width:260mm height:65mm |
Digital Otoscope(ear inspection)
|
Focus range |
5~30 mm |
|
Dimensions |
8.5 ´ 9 ´ 20 cm3 |
|
Weight |
330g |
Digital Dermatoscope(skin inspection)
|
Focus range |
10 mm diameter |
|
Dimensions |
8.5 ´ 8 ´ 20 cm3 |
|
Weight |
370g |
Digital General Imaging(general inspection including throat)
|
Focus range |
80 angle(diagonal) |
|
Dimensions |
8.5 ´ 5 ´ 20 cm3 |
|
Weight |
310g |
Standard Configurations
|
No. |
Parts name |
Qty |
Mark |
|
|
1 |
Main unit |
1 |
|
|
|
2 |
Charger station |
1 |
|
|
|
3 |
Otoscope |
1 |
Optional |
|
|
4 |
Dermatoscope |
1 |
|
|
|
5 |
General imaging |
1 |
Optional |
|
|
6 |
AV cable |
1 |
|
|
|
7 |
Charger |
1 |
|
|
|
8 |
Lithium battery |
1 |
|
|
|
9 |
Power cable |
1 |
|
|
|
10 |
USB cable |
1 |
|
|
|
11 |
SD flash card |
1 |
|
|
|
12 |
User manual |
1 |
|
|
