Automatic Color Steel Roof Tile Roll Forming Machine With 11 Kw Hydraulic Motor Power
Automatic Color Steel Roof Tile Roll Forming Machine With 11 Kw Hydraulic Motor Power
Summary of Steel Roof Tile Roll Forming Machine
- Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Main Motor Power: 5.5 Kw
- Hydraulic Motor Power: 7.5 Kw
- Forming Station: 13 ( depend on profile drawing )
- Axis Diameter: ¢ 75mm
- Working Speed: 0-15 m/min
- Transporting Type: Chain Transmission
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Electrical Control: PLC Frequency Control System with touch screen
Specifications
| Machine Name | Steel Roof Tile Roll Forming Machine | |
| Material | Thickness | 0.3-0.7mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-300 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Roof Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Pressing Device | Pressing Type | Hydraulic type pressing |
| Pressing Mould | Cr12 Mov steel, HRC58-62 | |
| Cutting Device | Cutting type | Hydraulic cutting |
|
Cutting Die Material |
Cr12Mov steel, HRC58-62 | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control Board | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
| Run out Tables | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roof Tile Roll forming machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 2 Units |
Layout of Tile Roll Forming Machine
Decoiler ---> Fedding Guide ---> Tile Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table
Reference Tile Profile Drawings
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
TECHWELL Advantage
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
- Copra designing software
- 5-8 technicians every month specially do international installation and debugging.

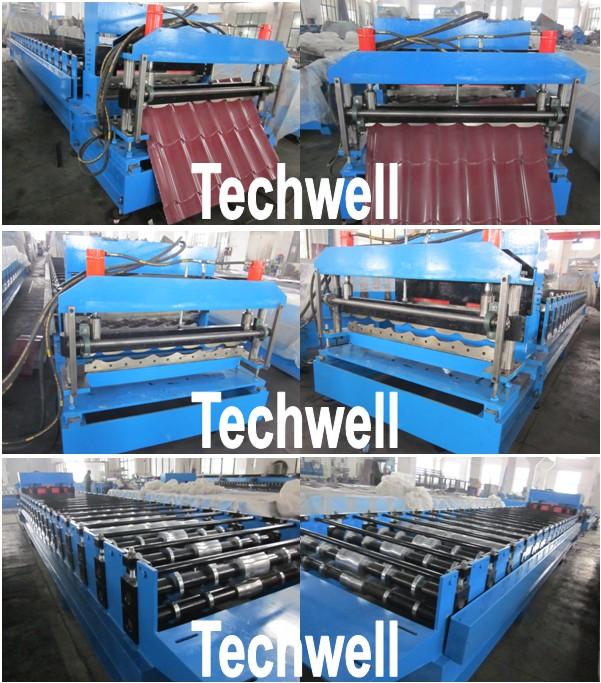

More Machine Pictures
Contact TECHWELL
| Company | Wuxi Techwell Machinery Co.,LTD |
| Website | www.cold-rollformingmachine.com |
| www.roofrollformingmachine.com | |
| www.wxtechwell.com | |
| Video | www.youtube.com/wxtechwell |
| Tel / Fax | 0086-510-83133431 |
| Mobile | 0086-18018304331 ( Miss Lee ) |
| monica@wxtechwell.com | |
| Skype | monica198614 |
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
