Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
55-65 working days
Brand:
TECHWELL
Product Description
Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System
Components of Hi-Rib Roofing Sheet Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Hi-Rib Roofing Sheet Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Table | 2 Units |
Technical Specifications of Hi-Rib Roof Sheet Roll Forming Machine
| Item | Hi-Rib Roofing Sheet Roll Forming Machine | |
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Hi-Rib Roofing Sheet Roll FormingMachine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Roof Profile Drawings
Applications
Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

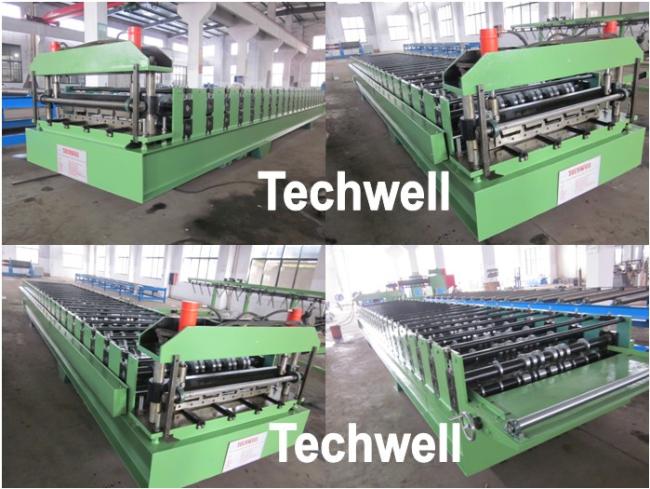

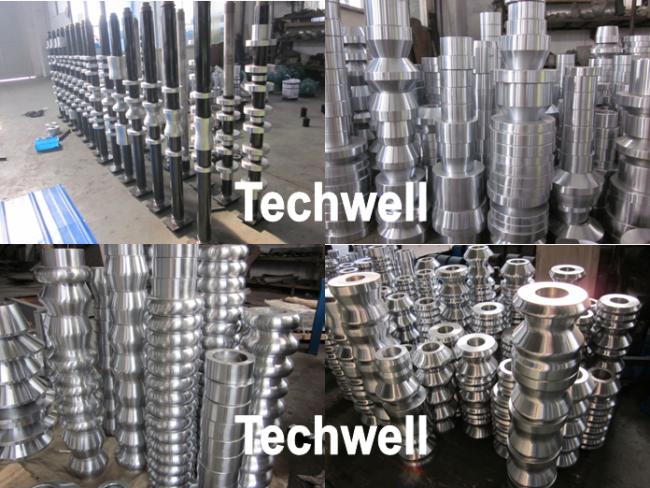

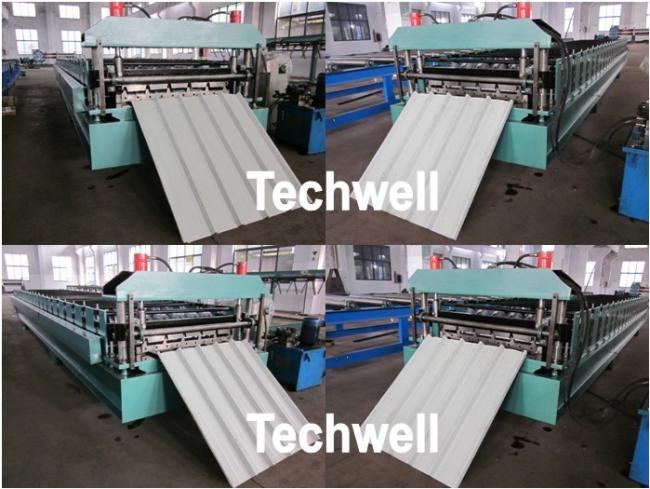

Pictures of Hi-Rib Roof Sheet Roll Forming Machine
Contacts
| Company | Wuxi Techwell Machinery Co.,LTD |
| Website | www.cold-rollformingmachine.com |
| www.roofrollformingmachine.com | |
| www.wxtechwell.com | |
| Video | www.youtube.com/wxtechwell |
| Tel / Fax | 0086-510-83133431 |
| Mobile / Whatsapp / Viber | 0086-18018304331 ( Miss Lee ) |
| monica@wxtechwell.com | |
| Skype | monica198614 |
