Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
65 working days
Brand:
TECHWELL
Product Description
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Main Specifications of Corrugated Roof Sheet Roll Forming Machine
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Coil Width | Max. 1250mm |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Corrugated Roof Roll Forming Machine | Forming Stations | 16 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | PANASONICE or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
Components of Corrugated Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Corrugated Roof Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Output Table | 2 Units |
Reference Corrugated Profile Drawings
TECHWELL Advantage
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
Photos of Corrugated Sheet Roll Forming Machine

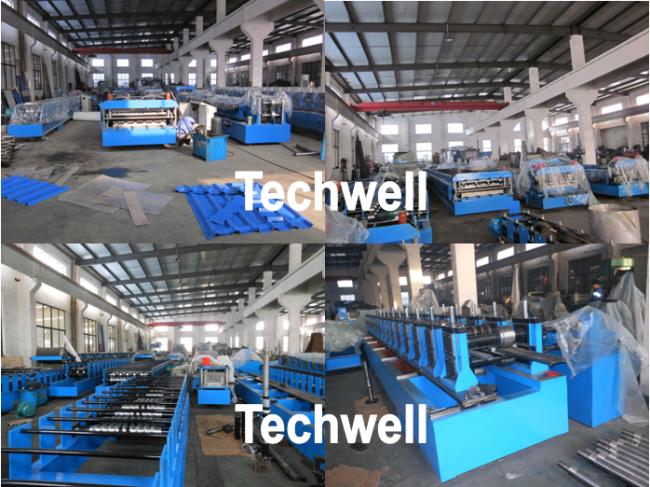

Factory Pictures
