Hydraulic Cutting 13 - 22 Stations Tile Roll Forming Machine For Metal Roof Tile
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
55-65 working days
Brand:
TECHWELL
Product Description
Forming Speed 0-15m/min Tile Roll Forming Machine For Metal Roof Tile With TW-GTM
Main Specification
| Material | Thickness | 0.3-0.7mm |
| Coil Width | Customized, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-300 Mpa | |
| Material | PPGI,Color Steel,GI | |
| Decoiler/Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Tile Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW |
- Hydraulic Station: Famous Chinese brand
- Hydraulic Power: 5.5KW
- Cutting type: Hydraulic cutting
- Cutting Die Material: Cr12Mov steel, HRC58-62
- CuttingTolerance: 10m+/-1.5mm
- Encoder: OMRON Brand
- PLC: PANASONIC Brand
- Inverter: YASKAWA Brand
- Touch screen: PANASONICE
- Operation type:Touch screen & Button
Components
- Decoiler ---------------------------------------------- 1 Unit
- Feeding guide -------------------------------------- 1 Unit
- Main roll forming machine ------------------------ 1 Unit
- Hydraulic pressing device -------------------------1 Unit
- Hydraulic cutting device --------------------------- 1 Unit
- Hydraulic Station ----------------------------------- 1 Unit
- PLC computer control ------------------------------1 Unit
- Output tables ---------------------------------------- 2 Units
Work Flowing
Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall claddin
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience

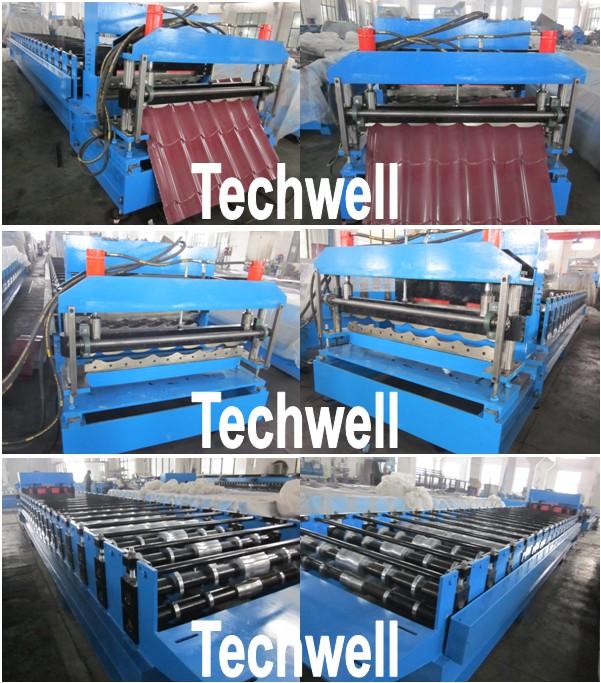

Machine Pictures
