Q235 Cold Rolled Strip Steel Cable Ladder Roll Forming Machine with 11.5 Ton Weight

   A). Main Specifications

1) Forming material thickness: 1.5-2.0mm

2) Forming material type: GI or Carbon Steel

3) Machine Frame: high grade steel welded and tempering treatment

4) Forming Speed: 0-15m/min excluding punching / cutting time

5) Forming Motor: ≈15KW

6) Width adjustable motor ≈1.5KW

7) Size adjustment: electrical power adjustment

8) Drive type: Chain Drive

9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

10) Shaft Diameter: Φ 70mm

11) Bearing: HRB bearing ( Top Chinese brand )

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Finished profile straightness tolerance ≤±1.5mm/10m

15) Finished profile angle tolerance ≤±1.5 degree/10m

   B). Applications

Cable tray, cable ladder, cable profile, tray profile

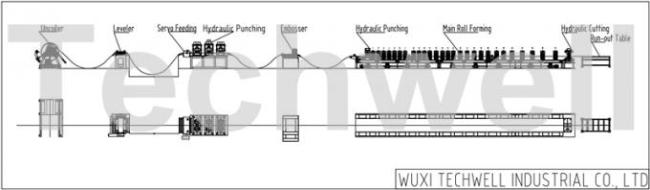

   C). Working Flow

Auto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine --

Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table

   D). Competitive Advantages

High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience

Provide sample in free

Products and design solution supplied fast and freely

Direct manufacturer, provide with high quality and best price

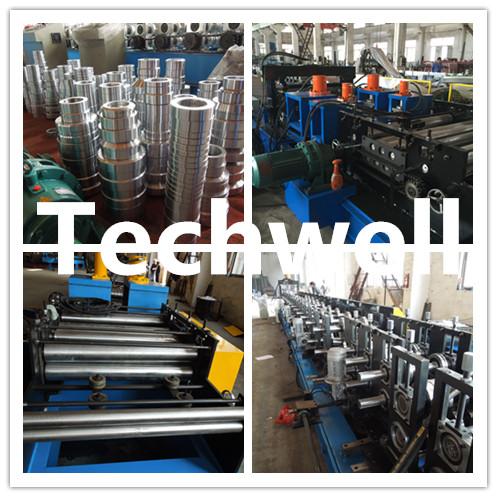

   E). Reference Pictures
