Vertical Hydraulic Roof Panel Curving Machine for Curving Color Coating Steel Roof Sheet

   A). Main Components

This machine consists of feeding device, curving & pressing device and electric control system. It adopts the formed pressing die to press the "pit" on the formed panels and make the panel curved. By changing the distance of the wave mark and adjusting the depth of "pit" can form into the panels with different radian. This machine adopts the PLC control to realize the automatic controlling of wave mark space and the free-set of wave mark space data.

   B). Main Specifications

1. Raw material thickness: 0.3-0.8mm
2. Raw material width and length: according to customer's request
3. Working Speed: 10000-12000mm/min ( adjustable)
4. Total Motor Power: 2.2 Kw
5. Roller material: High grade 45# forged steel, surface polished and coated with 0.05mm thickness hard chrome
6. Shaft material: high grade 45# Steel with Diameter 75mm
7. Cutting Blade: Cr12 mould steel with quenched treatment
8. Control: PLC computer control ( frenquency convercy )
9. Curving radius: 500mm

   C). Whole Working Process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→ Output

   D). Competitive Advantages


1). Professional designing for manufactures roofing & walling

2). Automatically continually manufactures high quality product with PLC.

3). Easy operation: Directly input the data on the Touchable screen.

4). Customers decide the profile of products.

5). Saving time and cost owing to high speed running with hydraulic system.

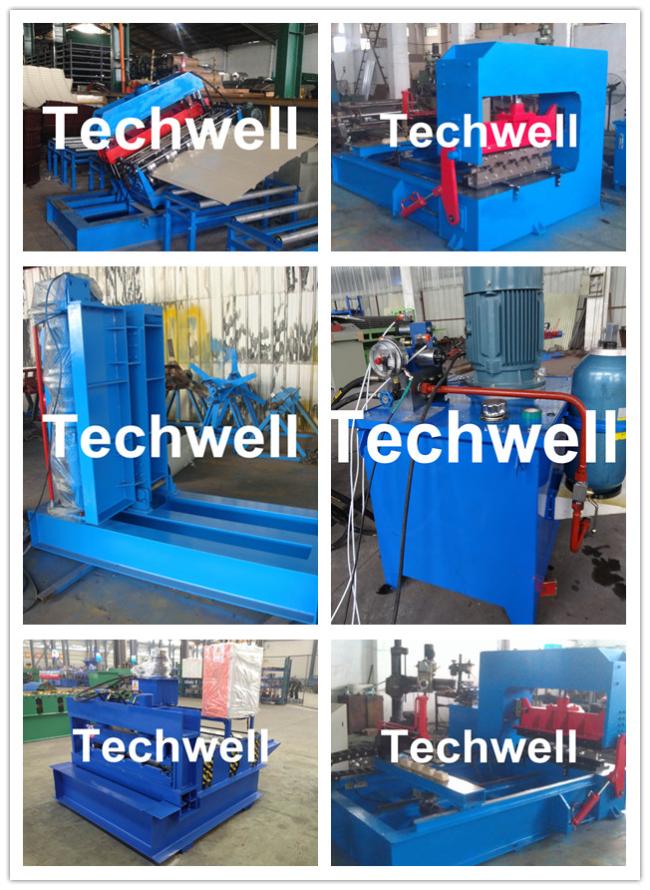

   E). Reference Machine Pictures

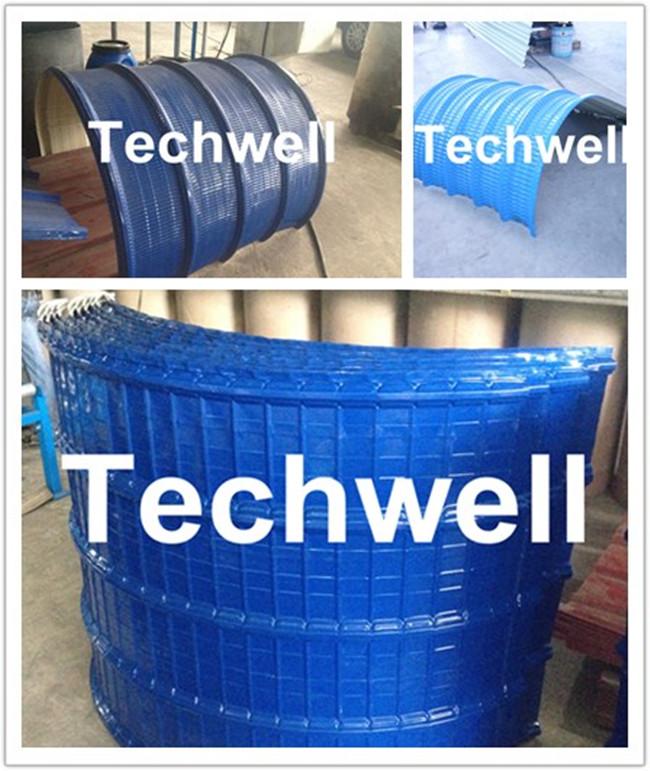

   F). Output Products Pictures

   G). Applications

To curve roof wall panel, roof sheet, roof panel, to mak bull nose...
