GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
Price:
Contact us
MOQ:
1 Set
Delivery Time:
55-65 working days
Brand:
TECHWELL
Product Description
GI , Carbon Steel Top Hat Purlin Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
Main Specifications of Top Hat Purlin Roll Former
| Coil Material | Thickness | 1.5-2.5mm |
| Coil width | Custom-made | |
| Yield Strength | 250-350Mpa | |
| Material | GI. Carbon Steel | |
| Decoiler / Uncoiler | Coil Width | Max. 600mm |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Pinch Feeding & Leveling | Feeding roller | 4 Rollers |
| Leveling roller | 7 Rollers ( upper 3 rollers, bottom 4 rollers ) | |
| Punching | Punching type | Hydraulic Punching |
| Punching die | Cr12Mov, quenched, HRC58-62 | |
| Roll Forming Machine | Forming stations | 14 Stations ( Depend on Profiles ) |
| Roller material | GCr15 steel, HRC58-62 | |
| Diameter of shaft | 80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 15KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting blade | Cr12Mov, quenched | |
| Cutting Tolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | MCGS Brand or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 7.5KW | |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
Working Flow

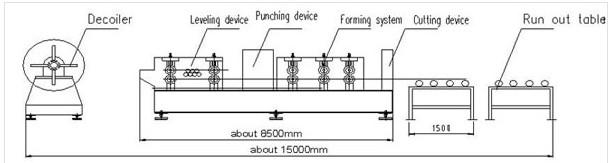

Decoiler ---> Fedding & Leveling ---> Punching ---> Roll Forming ---> Cut-to-length ---> Run out table
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Pinch Feeding & Leveling | 1 Unit |
| Punching | 1 Unit |
| Main Roll Forming Machine | 1 Unit |
| Cutting To Length | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Table | 2 Units |

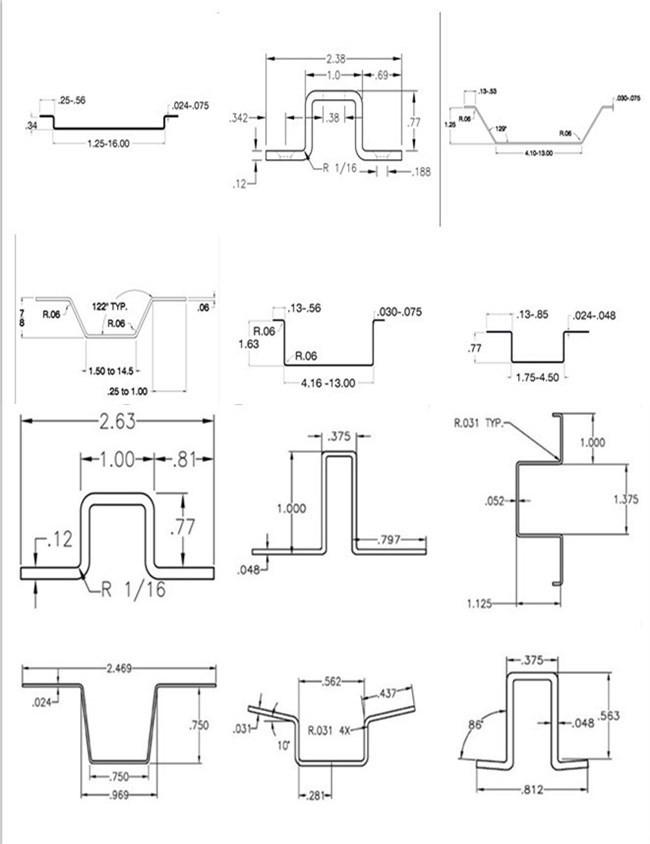

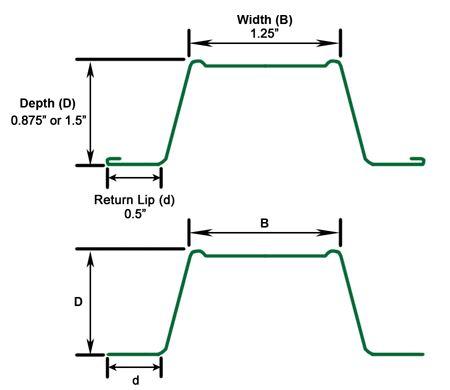

Reference Profile Drawing

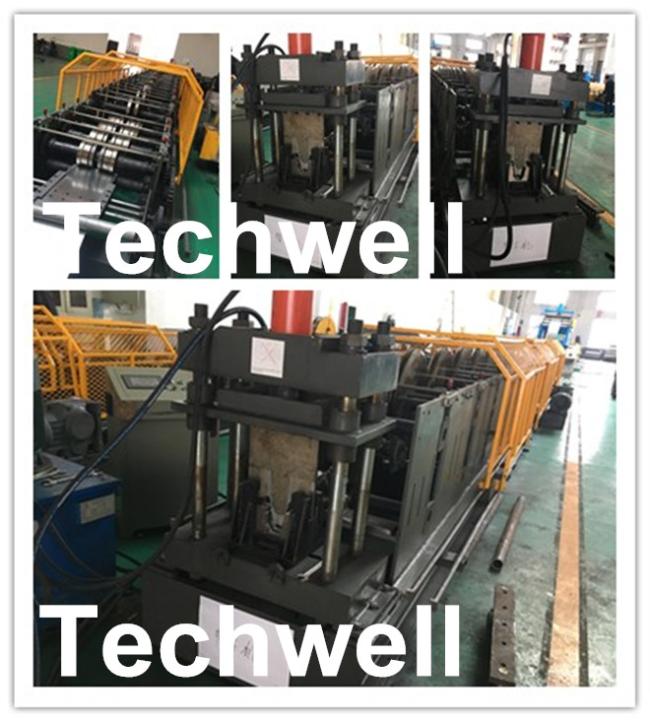

More Reference Machine Pictures
