1.5-3.0mm Material Thickness Top Purlin Forming Machine For Making Top Hat Channel, Furring Channel

   Main Specifications

1. Material: GI, Carbon steel
2. Material thickness: 1.5-3.0mm
3. Main power: 15KW
4. Feeding Rollers: 4 Rollers
5. Leveling rollers: 7 rollers (upper 3 rollers, bottom 4 rollers)
6. Machine diameter: about 11500x1500x1300mm ( LXWXH )
7. Weight of machine: about 10 Ton
8. Main Technical Specification:
9. Decoiler: Manual or hydraulic decoiler ( customer can choose )
10. Weight capacity of decoiler: 5 Ton
11. Punching type: Hydraulic punching
12. Forming station: 16 stations
13. Principle axis: 80mm diameter
14. Forming speed: 0-15m/min
15. Drive type: 1.5' chain transmission
16. Roller material: GCr15 steel, quenched and heated process
17. Main power: 15KW
18. Hydraulic power: 7.5KW
19. Electrical Control: PLC Frequency Control System with touch screen
20. PLC: PANASONIC Brand
21. Encoder: OMRON Brand
22. Transducer: PANASONIC Brand

   Main Components

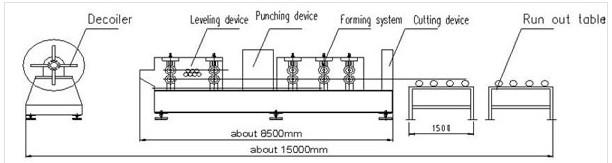

   Working Flow Chart

Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------

Run out table

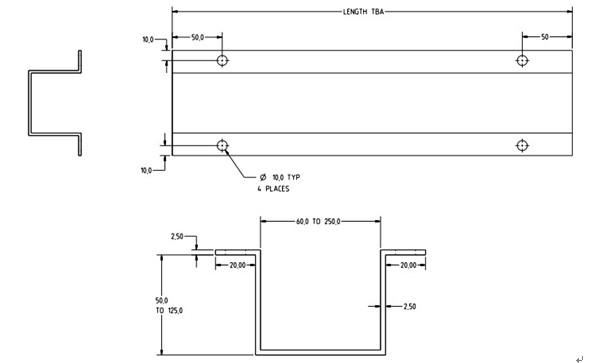

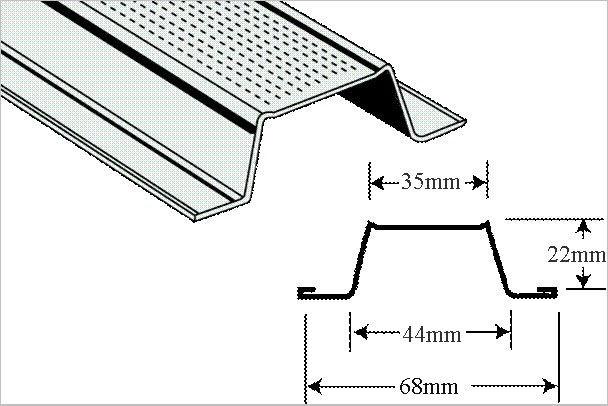

   Reference Profile Drawing

   Applications

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

   Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

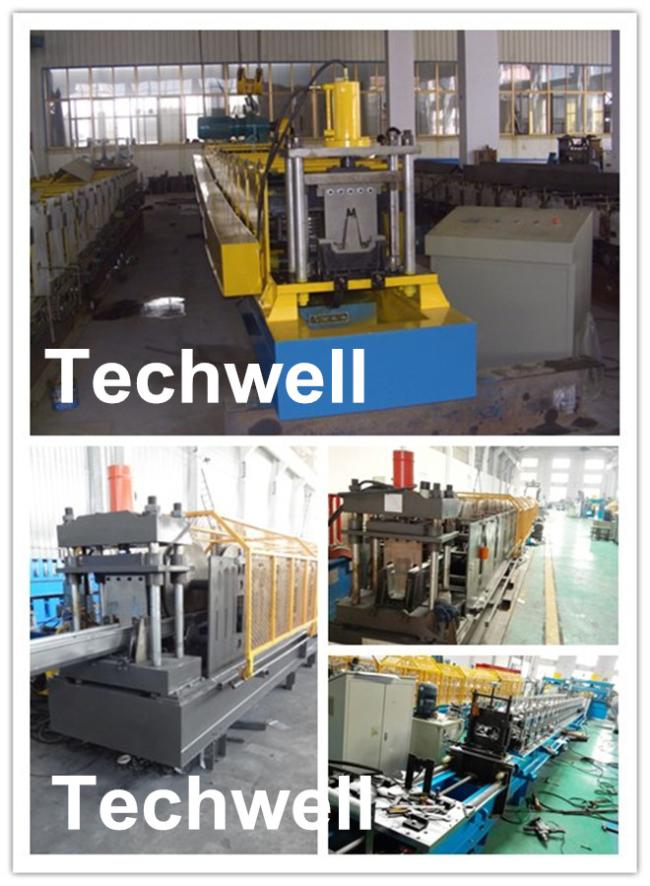

   More Machine Pictures
