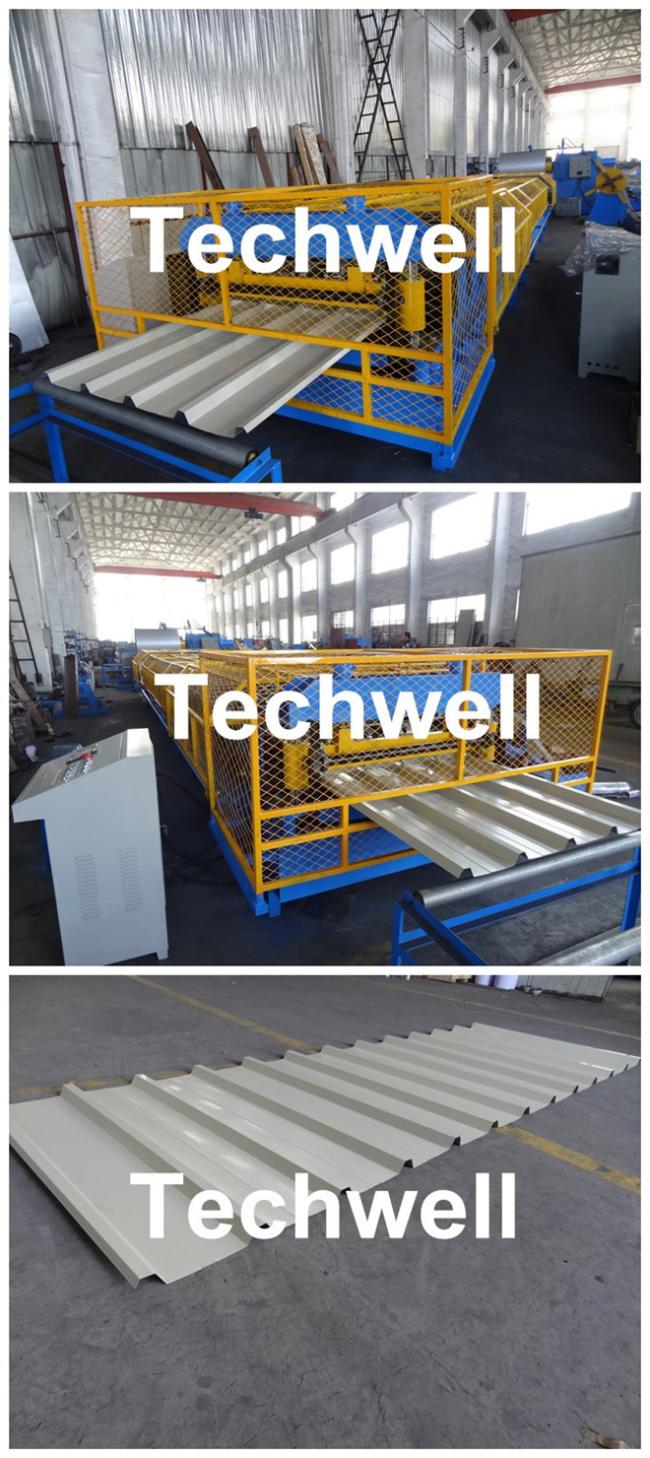

7.5KW Power PU Panel Roof Cold Roll Forming Machine With 13-20 Forming Stations

   Technical Specifications

1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight Capacity of Decoiler: 5Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm

2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.8mm

2. Forming material type: PPGI, GI

3. Machine frame: high grade steel welded and tempering treatment

4. Forming structure: Welded wall plate strcuture

5. Forming motor: 7.5KW

6. Shaft material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft diameter: 75mm

8. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

9. Forming speed: about 0-15m/min (excluding cutting time)

10. Forming station: ≈ 18 stations

3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting

2. When cutting, Machine stop

3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

4. Hydraulic station power: 4KW

5. Hydraulic pressure: 15Mpa

6. Cutting Tolerance: +/-1.5mm

   Working Flowing Chart

Decoiler / Uncoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table
