Steel Roof / Roofing Sheet Making Machine for Making 0.2 - 0.8mm Thickness Roof

   A). Reference Specifications of Metal Roof Sheet Making Machine

• Material thickness: 0.3-0.8mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 3 Kw
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: YASKAWA Brand
• Machine Weight: about 5 Ton
• Forming Station: 13-20 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 76mm
• Working Speed: 0-15 m/min
• Transporting of Corrugated Roofing Sheet Making Machine: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm

   B). Composition of Metal Roof Sheet Making Machine

   C). Reference Picture Drawings of Corrugated Roofing

   D). Our Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

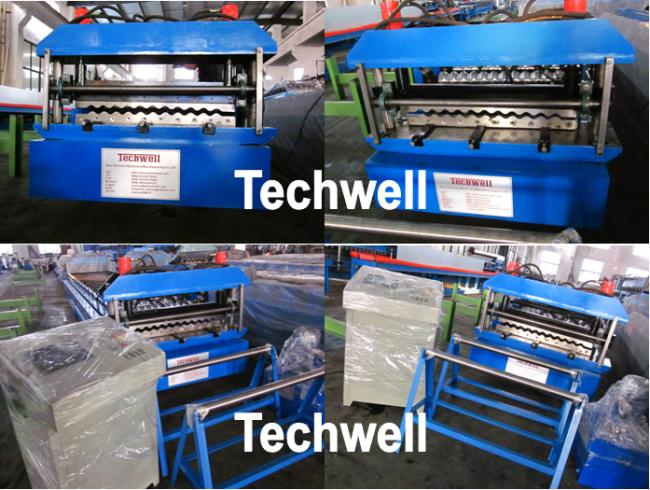

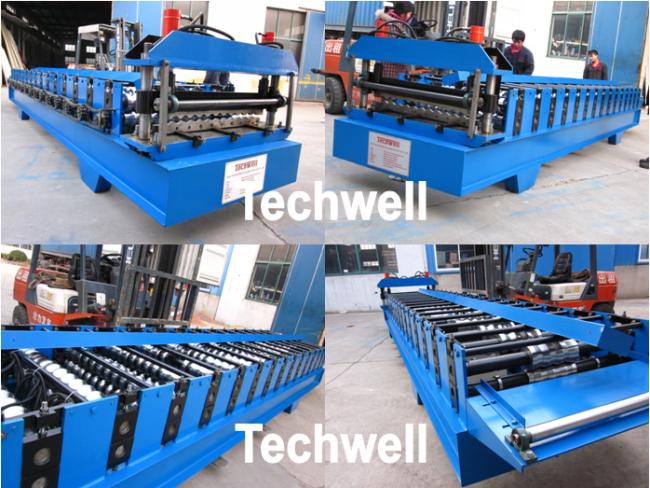

   E). Reference Pictures of Corrugated Roofing Sheet Making Machine

   H). FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine.

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.

Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
