Custom 0.3 - 0.8mm Thickness Automatical Metal Corrugated Sheet Roll Forming Machine
Custom 0.3 - 0.8mm Thickness Automatical Metal Corrugated Sheet Roll Forming Machine
A). Specification Summary of Corrugated Sheet Roll Forming Machine
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Material thickness: 0.3-0.8mm
- Main Motor Power: 5.5 Kw
- Hydraulic Motor Power: 3 Kw
- Forming Station: 13-20 ( depend on profile drawing )
- Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
- Main Shaft Material: High grade 45#, quenched and heat treatment.
- Shaft Diameter: ¢ 76mm
- Working Speed: 0-15 m/min
- Transporting Type: Chain Drive
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Machine Frame stand: Welded structural steel
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
- Machine Weight: about 5 Ton
B). Main Components of Corrugated Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Corrugated Sheet Roll Forming Machine | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 2 Units |
C). Characteristic of Corrugated Roll Forming Machine
1. This Corrugated Sheet Profile Roll Forming Machine can rollform galvanised corrugated roofing panel sheet. After roll formed by this corrugated sheet roll forming machine, the surface of iron metal roof sheet panel is very smooth and beautiful without any scratch on the surface of profile sheets.
2. The Corrugated Sheeting Roll Forming Machine is with fully automatic control system with PLC.
3. Length, quantity of sheets is adjustable.
4. Easy operation: Key in the length and quantity on the control panel.
5. Rollforming process: Decoiler, Rollforming, Cut to length.
6. 1 Year warranty, lifelong time service.
7. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
- Copra designing software
- 5-8 technicians every month specially do international installation and debugging

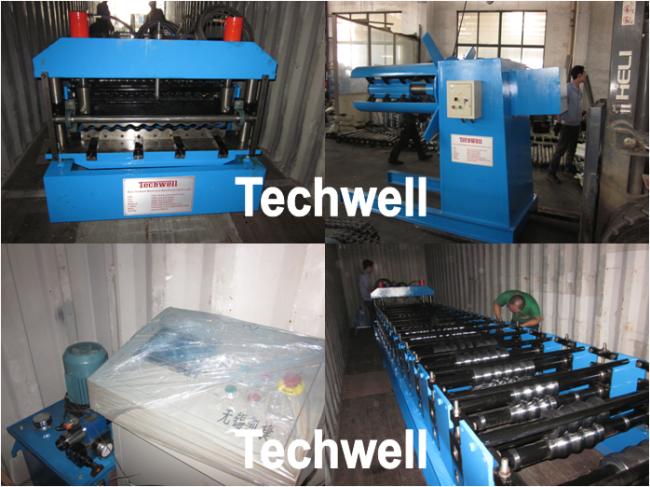

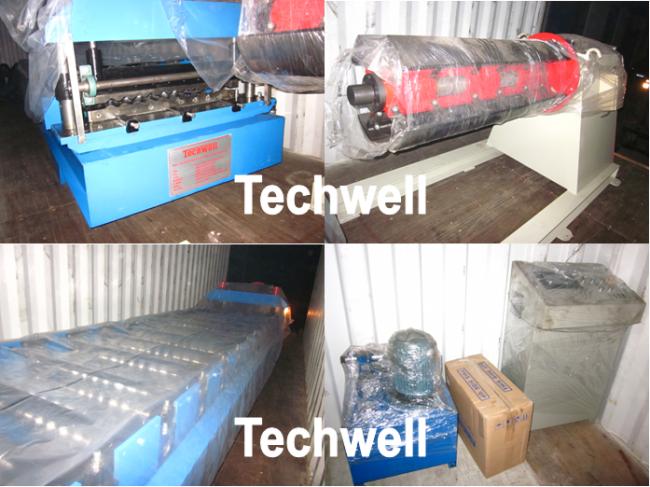

F). Reference Pictures of Uploading Corrugated Roll Forming Machine
G). Contact Us freely
| Company | Wuxi Techwell Machinery Co.,LTD |
| Website | www.cold-rollformingmachine.com |
| www.roofrollformingmachine.com | |
| www.wxtechwell.com | |
| Video | www.youtube.com/wxtechwell |
| Tel / Fax | 0086-510-83133431 |
| Mobile | 0086-18018304331 ( Miss Lee ) |
| monica@wxtechwell.com | |
| Skype | monica198614 |
| MSN | lixiaohua_monica@hotmail.com |
H). FAQ
1. How to get a accurate quotation from us?
a. Material width and thickness. b. drawing of profile.
As for the drawing, you can provide by yourself, or choose from our standard profiles.
2. How to repair & maintain our Roll Forming Machine?
a. Normally, the machine can work without problem for at least 5 years.
b. If you have problem, do not change the machine by yourself. Tell us the problem, and we help you to solve it step by step.
3. What policy for broken parts?
Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems. After one year, you need to buy by factory cost.
