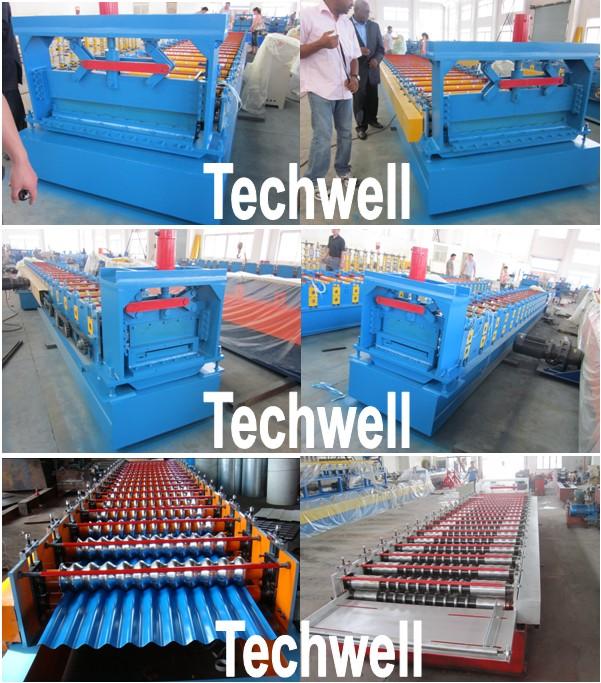

Corrugated Roof Wall Cladding Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Price Negotiable

Price: Contact Us

MOQ: 1 Set

Delivery Time: 55-65 working days

Brand: TECHWELL

Product Description

Corrugated Roof Wall Cladding Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

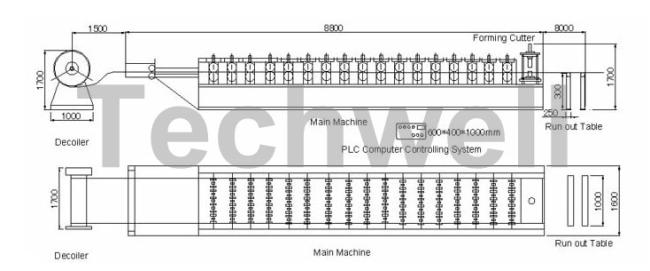

Working Flow of Roof Panel Roll Forming Machine

Decoiler ---> Fedding Guide ---> Roof Panel Roll Forming ---> Cut-to-length ---> Run out table

Main Technical Data of Roof Panel Roll Forming Machine

Item	Roof Panel Roll Forming Machine
Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made, 1000mm or 1200mm or 1250mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Roof Panel Roll Forming Machine	Forming Stations	13-18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Main Components of Roof Panel Roll Forming Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Roof Panel Roll Forming Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units
