Steel Z Purlin , Z Profile Roll Forming Machine for Steel Z Shaped Purlin TW-Z300

Price Negotiable
Price: Contact Us
MOQ: 1 Set
Delivery Time: 55-65 working days
Brand: TECHWELL
Product Description

Steel Z Purlin, Z Profile Roll Forming Machine for Making Metal Z Shaped Purlin



   A). Introduction of Z Purlin Rolling Former

Z Purline Forming Machine can produce many types of Z-shaped purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment, pre-cutting equipment, Z-shape forming system, hydraulic station, and controlling system.

The C-shaped purlines formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.


    B). Main Specification of Z Purlin Rolling Former

  • Material: GI, Carbon steel
  • Material thickness: 1.5-3.0mm
  • Machine diameter: about 11500x1500x1300mm ( LXWXH )
  • Weight of machine: about 12 Ton
  • Decoiler: Manual or hydraulic decoiler ( customer can choose )
  • Weight capacity of decoiler: 5 Ton
  • Forming station: about 17
  • Principle axis: 80mm diameter
  • Forming speed: 0-15m/min
  • Drive type: 1.5' chain transmission
  • Roller material: GCr15 steel, quenched  and heated process
  • Main power: 18.5KW
  • Hydraulic power: 11KW
  • Punching: hydraulic punching
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand


   C). Working Flow of Z Purlin Rolling Former


Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table




   D). Component & Quantity of Z Purlin Rolling Former


  • Decoiler ------------------------------------------------- 1 Unit
  • Feeding & Leveling ----------------------------------- 1 Unit
  • Hydraulic punching device ----------------------------1 Unit
  • Main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station --------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table -------------------------------------------- 1 Unit




   E). Reference Drawing of Z Purlin Rolling Former









   F). Our Advantages of Z Purlin Rolling Former


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

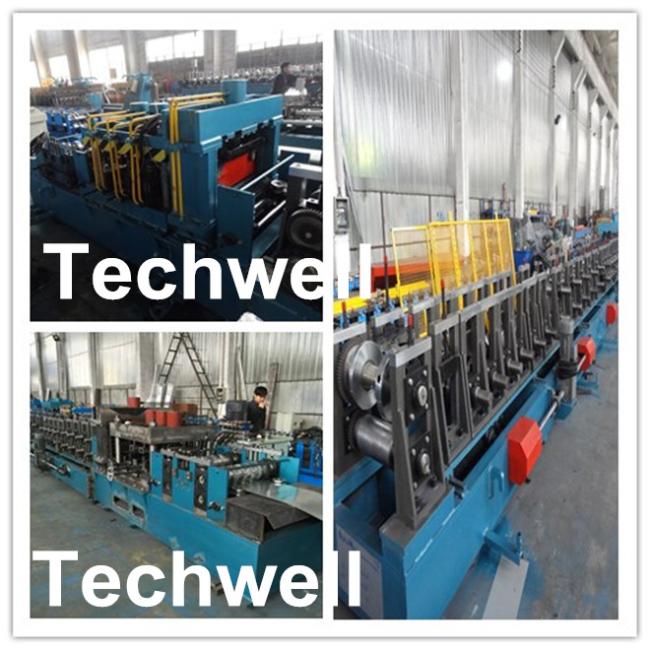

   G). Reference Pictures of Z Purlin Rolling Former
