7499021125 RJ45 2x10/100Mbps Ethernet Magnetic Jack Female Module LED Indicator
Price:
$0.11-$12
MOQ:
50/500/1000/25K
Delivery Time:
Stock
Brand:
LINK-PP
Product Description

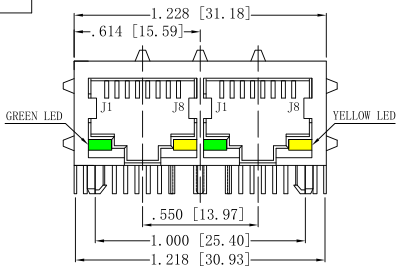

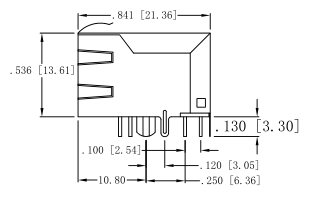

7499021125 RJ45 2x10/100Mbps Ethernet Magnetic Jack Female Module LED Indicator
- 1x2,10/100 RJ45 R/A SHIELd W/LED
- LPJ26204AENL LINK-PP Magnetic Rj45
- Cross 7499021125
| 6.350uH min OCL with 8mA bias current. Title: Electrical Specifications: @25℃ 1.Turns Ratio(± 2%): TX=1CT:1CT RX=1CT:1CT 2.Return Loss(dB Min): 1-10MHz:-18 30MHz:-16 60-100MHz:-12 3.Crosstalk: 1-100MHz:-30dB Min 4.Insertion Loss: 1-100MHz:-1.2dB Max 5.CMR: 1-50MHz:-30dB Min 50-130MHz:-20dB Min 7.Isolation Voltage:1500V 8.Operating Temperature:0-70℃ |
 |
 |
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
