LMJTAB881243M-L 10/100Base Transformer Magnetic RJ45 Jack LPJ4025-8ABNL

Speed:

10/100BASE-TX

Number of Ports:

1x1 PORT

Application - LAN:

ETHERNET (WITHOUT PoE)

Latch:

Down

Pin Type:

THT SOLDER

Temperature:

-40 TO 85℃

Listing Description:

1) manufacture RJ45 Magnetic Jack for 16years Experience

2) ISO9001 SGS UL CE REACH Certification

3) Main customer: TI GE SONY Samsung IBM CANON

4) PULSE OEM for 9 years

Detailed Description:

1. Characteristics:

1) RJ45 Connector with integrated transformer/common mode choke

2) Available in SMD, THT, and THT with USB

3) 350µH min. OCL with 8mA bias

4) Complies with IEEE 802.3

5) Extended temperature range -40°C to +85°C available

2. Operation/Application:

1) 10 / 100 Base-T

2) xDSL Modems

3) Embedded PC

4) LAN Applications

5) Hub, Router, Switches

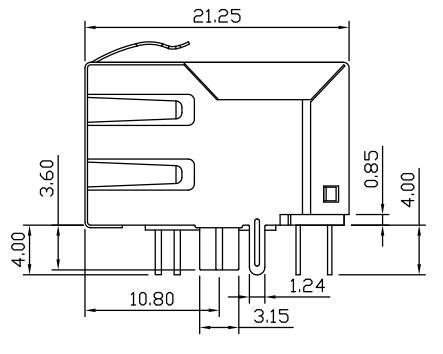

3. Mechanical Attachment:

1) Jack Configuration

 1X1

3. Electrical Characteristics:

1) Shielded

 Yes

4. Termination Related Features:

1) EMI Finger

 Yes

2) Termination Method

 Solder

5. Body Related Features:

1) Port Configuration

 Single

2) EMI Fingers -Top and Sides

 With

3) Latch Orientation

 Standard - Latch Down

4) PCB Tail Length

 3.50±0.50mm

6. Contact Related Features:

1) Preloaded

 Yes

2) Contact Termination Type

 Through Hole

7. Housing Related Features:

1) Connector Style

 Jack

8. Industry Standards:

1) RoHS/ELV Compliance

 RoHS-compliant, ELV-compliant

2) Lead-Free Solder Processes

 Wave solder capable of 265°C

3) RoHS/ELV Compliance History

 Always was RoHS compliant

9. Identification Marking:

1) Left LED Color

 Green

2) Right LED Color

 Yellow

10. Conditions for Usage:

1) Applies To

 Printed Circuit Board

2) Environmental Conditions

 Industry

3) Operating Temperature (°C )

 -40 - +85
